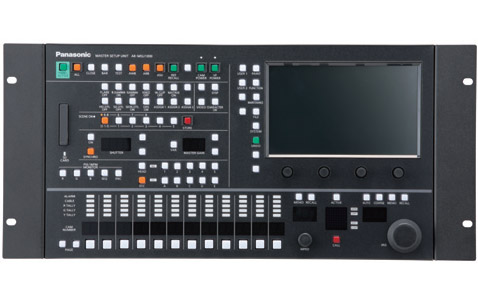

Panasonic Master Control Unit per AK-UC3000 - AK-HC5000. Mediante connessione via IP controlla fino a 99 camere, mentre con connessione via seriale controlla fino a 6 camere. 7 inch Touch Panel LCD, SDI Input (Monitoring) (1080i), Power DC12 V(DC10 V - DC17 V) or PoE+ (via PoE+ Hub)

Adjustment Functions Scene file, ND filter, CC filter, Color temperature (COLOR TEMP), Master gain (MASTER GAIN), Shutter (SHUTTER), Master pedestal (MPED), Iris (IRIS), Camera selection
Power Supply 12 V DC (DC input range: 10 V - 16 V DC) 42 V - 57 V DC (PoE+ power supply)
Power Consumption 1.6 A (Power supply: 12 V DC) 0.6 A (PoE+ power supply)
Operating Temperature 0°C to 40°C (-4°F to 140°F)
Weight Approx. 4.0 kg (8.82 lb)
Dimensions (W x H x D) 486 mm x 222 mm x 81.5 mm (19-5/32 inches x 8-3/4 inches x 3-7/32 inches) (including mounting brackets and dial heights)
CCU Control : Power DC 12 V (DC 10 V - DC 17 V) or PoE+ (via PoE+ Hub)
Maximum Cable Length When CCU connected: 50 m (164 ft)

AK-MSU1000GJ - PanasonicEAN 885170260603
