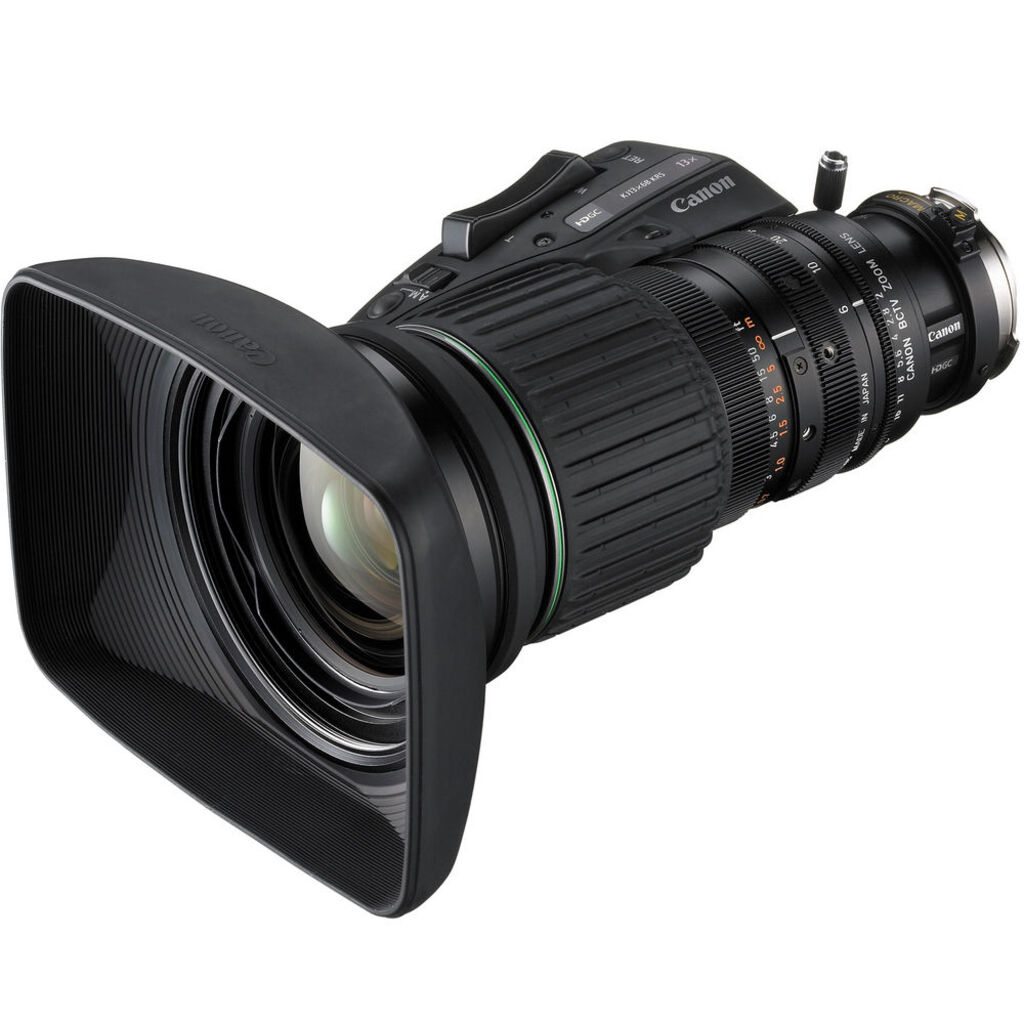

KJ13X6B KRSD - Canon

Mount B4
Image Format 2/3" sized sensor with prism block
Aspect Ratio 16:9
Object Image size (H x V) 0.38 x 0.21"(9.59 x 5.39 mm)
Focal Length 6 - 78mm
Zoom Range 13x
Built-in Extender No
Angular Field of View At 6mm: 77.3 x 48.5° (H x V)
At 78mm: 7.0 x 4.0° (H x V)
Optical Brightness Maximum Relative Aperture
1:2.0 at 6 to 58mm
1:2.7 at 78mm (ramping characteristic)
Minimum Object Distance (M.O.D.) From Front of Lens
Lens at 10mm with Macro: 15.7" (0.4 m)
Scene Object Dimensions at MOD At 6mm: 29.25 x 16.46" (74.3 x 41.8 cm)
At 78mm: 2.13 x 1.18 (5.4 x 3.0 cm)
Zoom Type Servo/Manual
Focus Type Manual
Iris Type Servo/Manual
Macro Yes
Dimensions (WxHxL) 6.5 x 4.1 x 8.3" (165.4 x 105.1 x 211.7 mm)
Weight 3.5 lbs (1.59 kg)
Packaging Info
Package Weight 8.95 lb
Box Dimensions (LxWxH) 19.5 x 12.6 x 10.2"
