S-1093F - SwitEAN  6948193506135

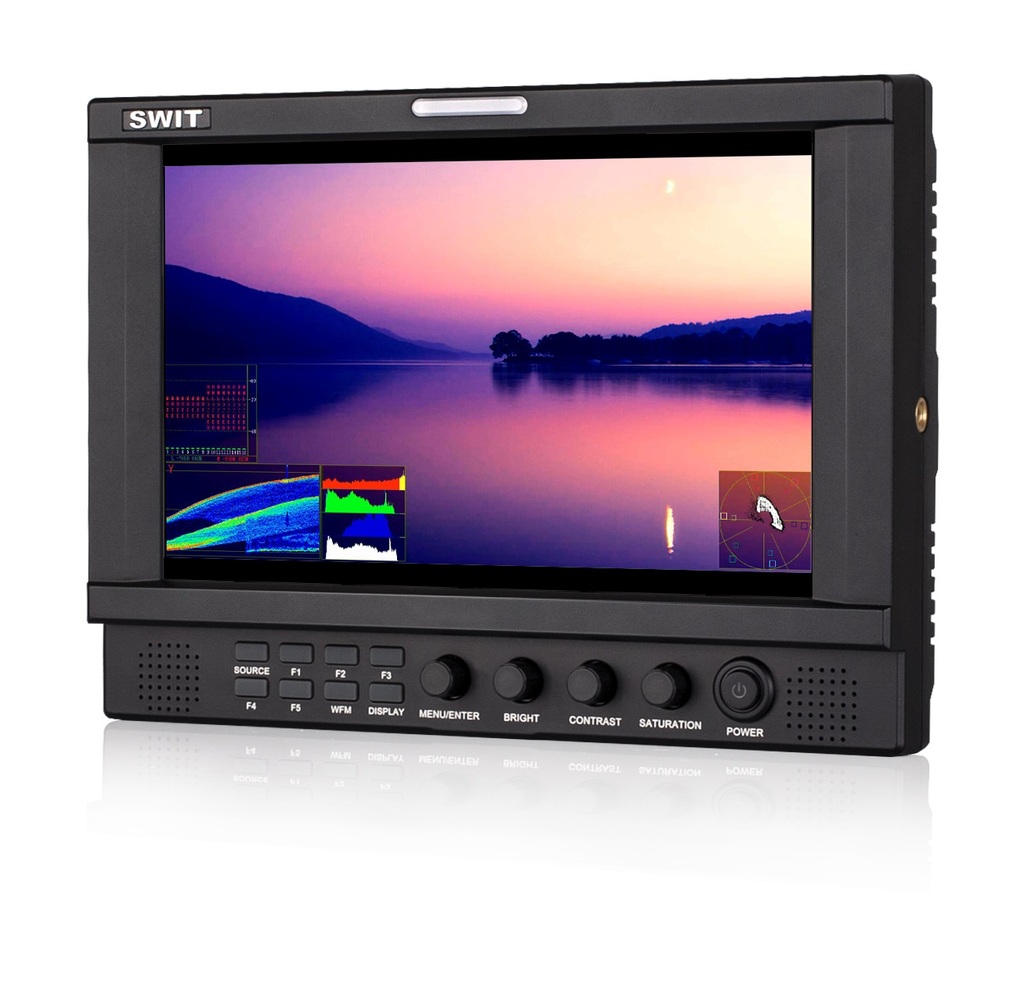

9-inch Full HD Waveform LCD Monitor

9" IPS LCD, 1920×1200, H/V 170°viewing
Build-in LCD protective glass

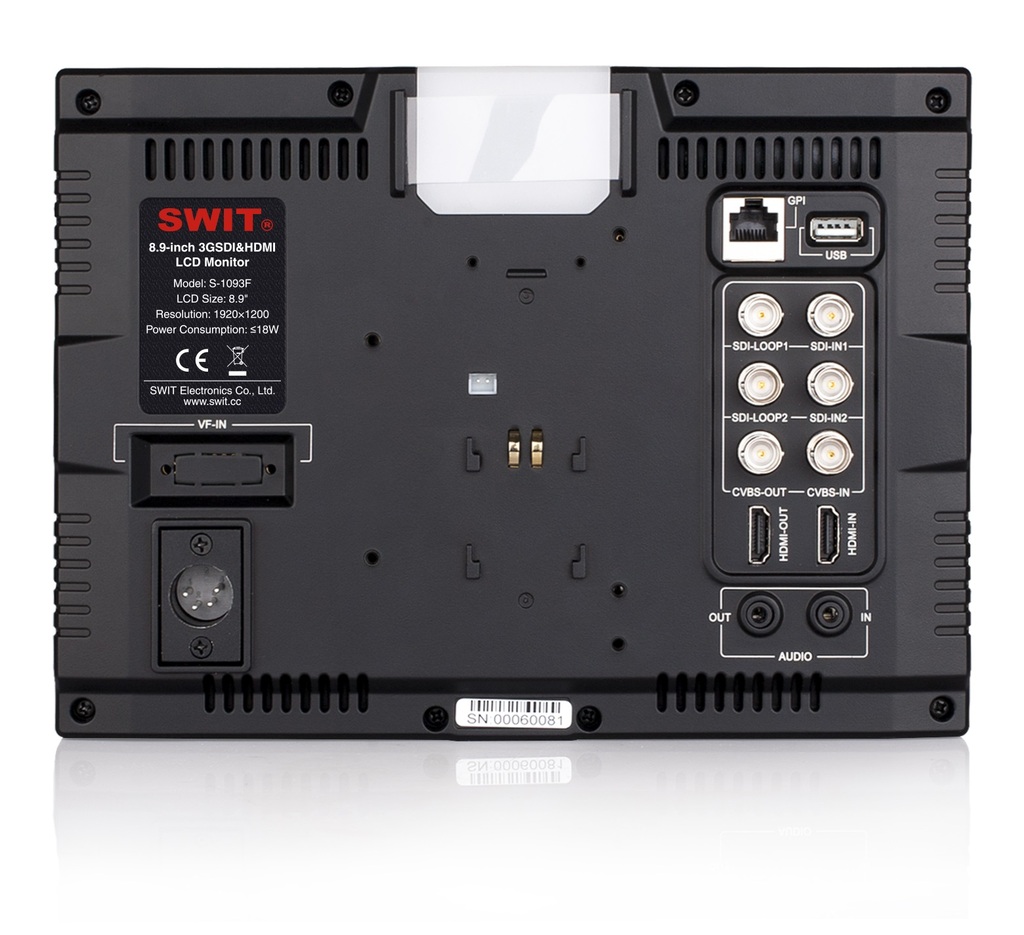

2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
16-ch Embedded audio meters with alert
Select any 2 audio channels to output
Waveform Y/Cb/Cr/R/G/B and single line
Vector scope, histogram R/G/B/Y
AFD, H/V delay, R/G/B/Mono, False color
TSL UMD and text TALLY display
Zebra stripes, Peaking focus assist
SDI timecode display
Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
Front / Rear TALLY light and GPI control
V-mount, Gold mount or snap-on DV mount compatibility ( Optional )
USB firmware upgrade
