M-Series M40 EB MAX Set - International (VEAM) L0.0019656

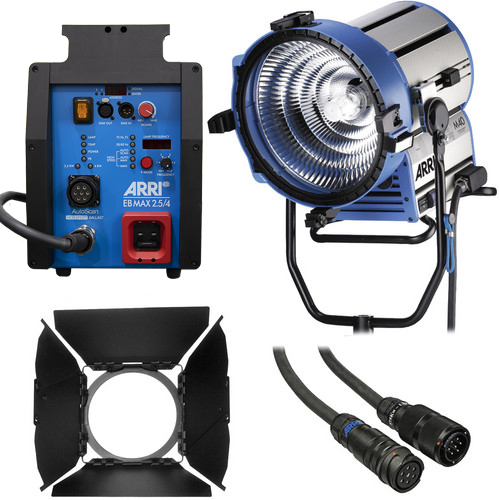

ARRI L0.0019656 (L00019656) M-Series M40 EB Max Set Including Ballast, Barndoor and Spill Ring. A member of the ARRI M-Series, the M40 is a lens-less system that unifies the advantages of Fresnel and PAR fixtures. The unit is open face and thus very bright: around 30 % brighter than an AS40 in spot. Due to its unique, patented MAX Technology reflector, it is also focussable over a range of 18 to 52° Half Peak Angle. The M40 gives a remarkably even beam spread that casts crisp shadows over the whole focus range. The reflector characteristics is optimised for 4,000 W lamps, but can also be used with 2,500 W lamps.
The lamphead is equipped with a CCL module (Compensation of Cable Losses). When operated with the ARRI EB 2.5/4 kW High Speed AutoScan with CCL, full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output indepent from cable length.
Included in box

1x Lamphead
1x EB MAX 2.5/4 Ballast (L2.0016746)
1x 4-leaf barndoor
1x Spill Ring
1x Head to Ballast Cable

A member of the ARRI M-Series, the M40 is a lens-less system that unifies the advantages of Fresnel and PAR fixtures. The unit is open face and thus very bright: around 30 % brighter than an AS40 in spot. Due to its unique, patented MAX Technology reflector, it is also focussable over a range of 18 to 52° Half Peak Angle. The M40 gives a remarkably even beam spread that casts crisp shadows over the whole focus range. The reflector characteristics is optimised for 4,000 W lamps, but can also be used with 2,500 W lamps.

The lamphead is equipped with a CCL module (Compensation of Cable Losses). When operated with the ARRI EB 2.5/4 kW High Speed AutoScan with CCL, full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output indepent from cable length.

Lamphead Open Face
Reflector MAX Technology
Facetted reflector
Wattage 2500 / 4000W
Lamp Base G38
UV Protection Glass Diameter 350mm / 14"
Max Operating Temperature ta=45°C / 482°F
Max Surface Temperature tc=max 160°C / 320°F
Tolerable Inclination max 90° upwards/downwards
Safe Distances 5m/ 16.4 ft to illuminated surface
1m / 3.3 ft around the luminaire
Protective Class I - Protective Earth
Protective Rate IP23
Dimensions 724 x 55 x 524mm / 28.5 x 19.9 x 20.6"
Packed Size 660 x 595 x 665mm / 26 x 23.4 x 26.6"
Weight approx 20kg / 43.9lbs
Packed Weight approx 24kg / 53lbs
Mounting Spigot 28mm / 11/8"
Certification CE, CB, GS, cNRTLus
MAX Range EB MAX 2.5/4
