Sennheiser SL RACK RECEIVER DW 3 EU | Ricevitori

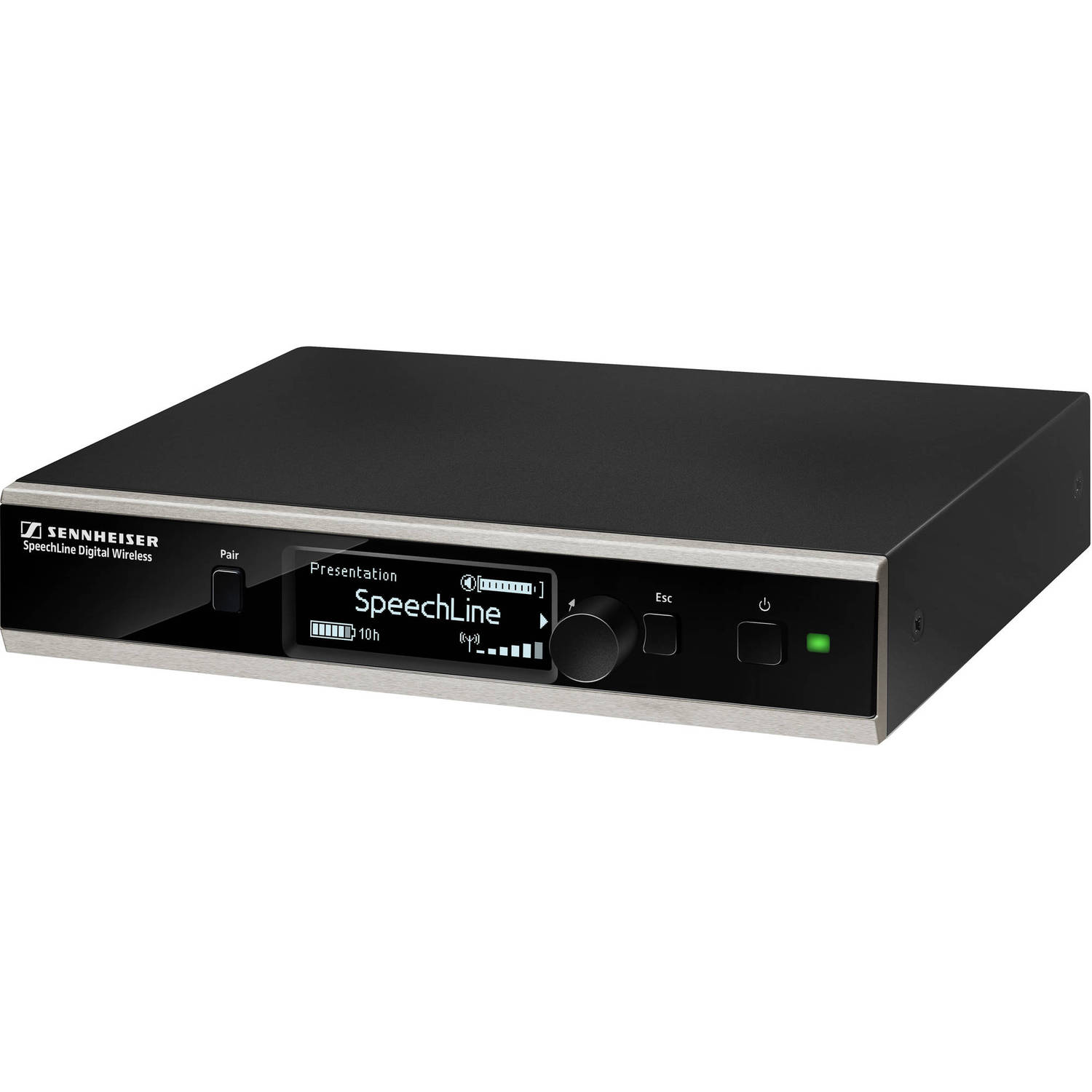

Ricevitore fisso True diversity con OLED display grafico. Banda di frequenza 1,9GHz con funzione Automatic Frequency Management per il cambio automatico delle frequenze in caso di interferenze. Trasmissione RF digitale criptata a 256-bit AES. Controllabile da software Sennheiser Control Cockpit o da sistemi di terze parti (QSC, Crestron, AMX, ...).

System
Frequency Response 20 Hz to 20 kHz
Dynamic Range > 120 dBA
Total Harmonic Distortion (THD) Typical 0.1 %
Sampling Rates 24-bit/48 kHz
Signal-to-Noise Ratio > 90 dBA
Encryption AES 256
Frequency Range USA: 1,920 to 1,930 MHz
Modulation GFSK with back channel
Transmission Method TDMA, space diversity
Latency 19 ms
Relative Humidity Maximum 95%
Temperature Range Operation: 14 to 131°F (-10 to 55°C)
Storage: -4 to 158°F (-20 to 70°C)
Receiver
RF Sensitivity < -90 dBm
RF Output Power Adaptive, up to 250 mW (country-specific)
Audio Output Level XLR Balanced: Maximum -18 dBu, typical -24 dBu
RCA Unbalanced: Maximum +6 dBu
Audio Effects Low Cut: -3 dB at 120 Hz
Equalizer: 7-band graphic equalizer with sound presets
Sound Profiles: Female voice, male voice, and instrument/media
Display OLED
Network Protocol Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/IPv6
Power Supply 12 VDC
Current Consumption 350 mA
Output Connection 1 x 3-pin XLRM
2 x RCA
Connections Network: RJ 45
DC Socket for Power Supply: Hollow jack
Dimensions Not specified by manufacturer
Weight 29 oz (828 g)
Power Supply
Nominal Input Voltage 100 to 240 VAC
Power Frequency 50 or 60 Hz
Input Current Maximum 120 mA
Power Consumption Standby: = 0.3 W
Operating Temperature 14 to 131°F (-10 to 55°C)
Storage: -4 to 158°F (-20 to 70°C)
Humidity (Relative) 95%
Dimensions Not specified by manufacturer
Weight Approx. 3.5 oz (100 g)
Packaging Info
Package Weight 5.9 lb
Box Dimensions (LxWxH) 16 x 10.8 x 3"

SL RACK RECEIVER DW 3 EU - SennheiserEAN 4044155086485
