Microfono a condensatore a canna di fucile corto per applicazioni audio-video professionali. Capsula: Condensatore (Electret), Polare: unidirezionale lobare, Risposta: 90-20000 Hz, Sens.: -36 dBV/Pa* a 1kHz *1 Pa=94 dB SPL, Impedenza: 144 Ohm, Max SPL: 137 dB, Filtro attivabile: 80 Hz (-12 dB/oct), Rumore: 15 dBA, S/N: 79 dB (IEC 651) at 94 dB SPL, Alimentazione: Phantom 11-52V 2mA, Peso: 76 gr., Dimensioni: Lunghezza 195mm Diametro 22 mm, Colore: Nero, Connettore XLR3M. Preamplificatore integrato. Accessori inclusi: Antivento in spugna, custodia morbida con zip.

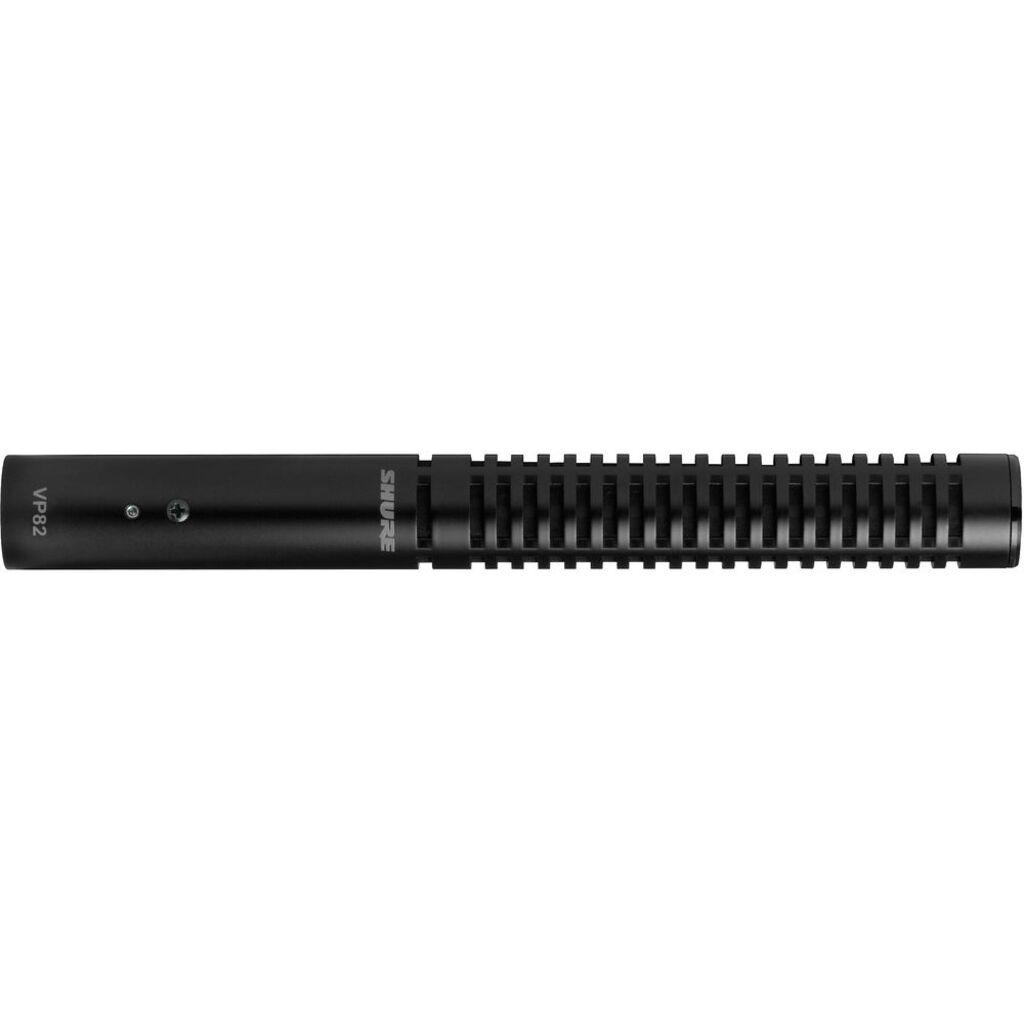

Shure VP82 End-Address Shotgun Condenser Microphone Specs
Transducer Electret Condenser
Polar Pattern Supercardioid / lobar
Frequency Response 150 to 20,000 Hz
Dynamic Range (Typical) @ 1kHz
500 O load: 122.5dB
1000 O load: 116.5dB
Clipping Level @ 1 kHz, 1% THD
2500 O load: 7.0 dBV
1000 O load: 0.0 dBV
Signal-to-Noise Ratio Self Noise (equivalent SPL, A-weighted, typical)
15.0 dB SPL-A
CMR 20 to 20,000 Hz
= 55 dB
Operating Temperature Operating: 0 - 135°F (-18 to 57°C)
Relative Humidity 0 to 95%
Power Requirements 11-52 V DC phantom power (IEC-61938), < 2.0 mA
Output Impedance 144 O
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Housing Satin-black vinyl painted aluminum alloy with stainless steel screen
Weight 2.9 oz (76g)
Packaging Info
Package Weight 0.85 lb
Box Dimensions (LxWxH) 10.3 x 4.95 x 3.35"
