RENT PK-BM5 III-WR - Portkeys

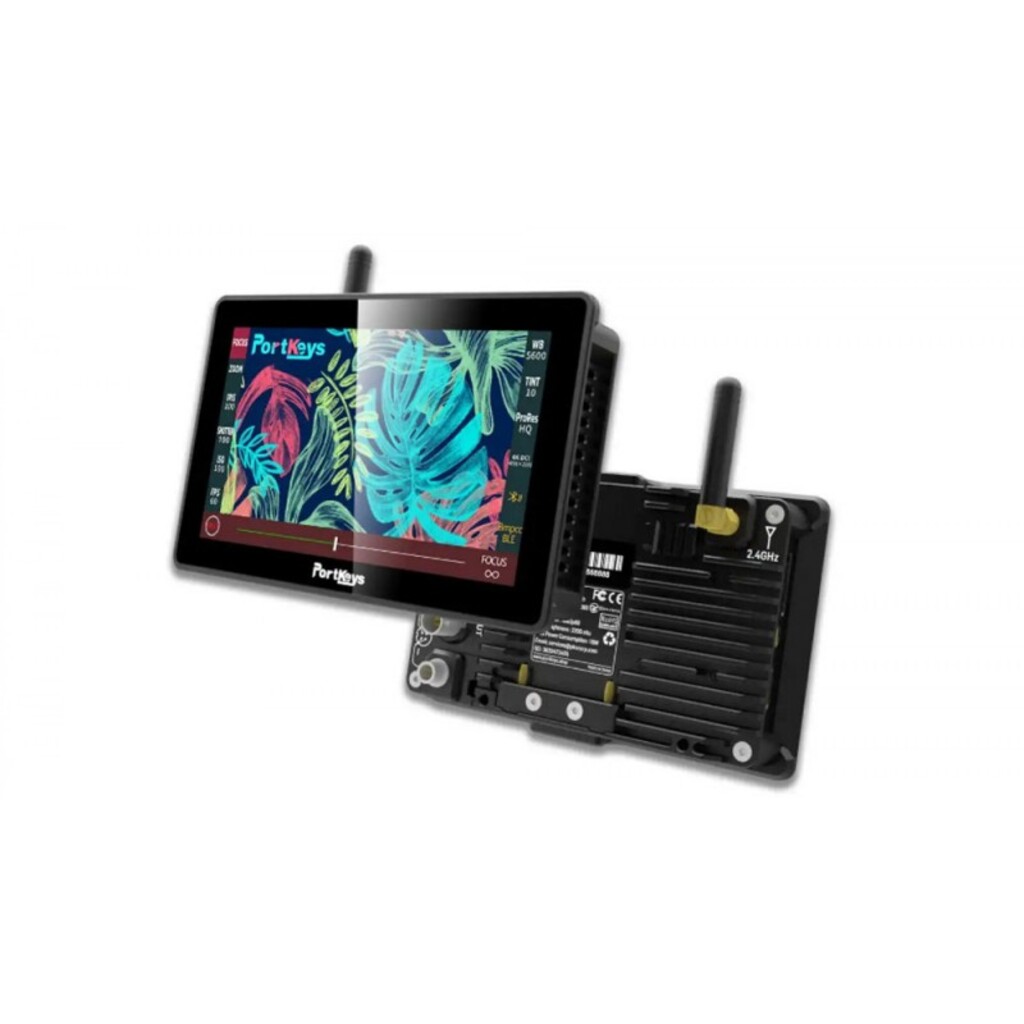

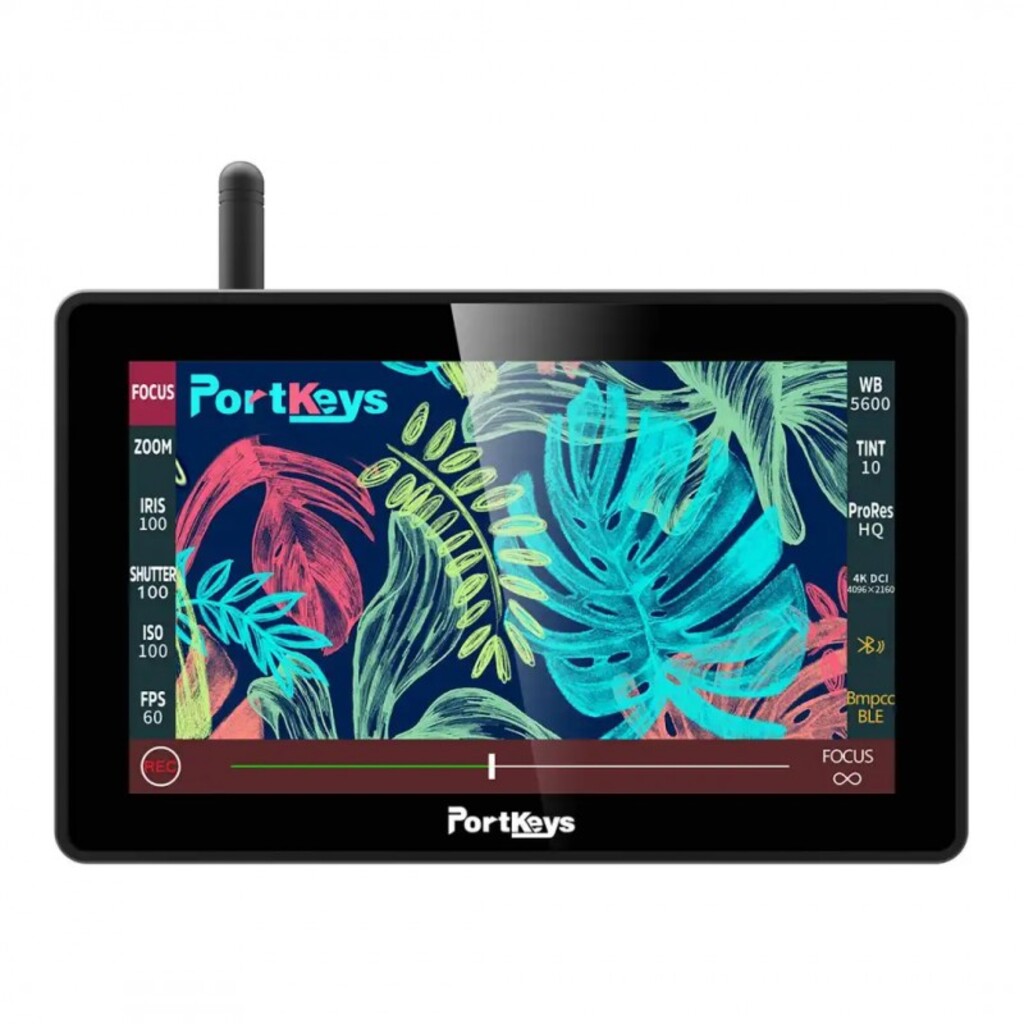

This is the new Portkeys BM5 WR monitor. A 2200 Nits ultra clear HDMI SDI Touch Screen 5.5 "Monitor with 3D Luts and built-in camera control module.

With this monitor you can operate your camera! And even wirelessly via WiFi the RED Komodo, and BlackMagic pocket cameras with the built-in bluetooth module!
2200 Nits 5.5 inch panel: Aluminum alloy touch screen monitor + tempered glass with 1920x1080 resolution. Camera Control: Photo, Video Recording, AV, Tv, ISO, Auto Focus, Zoom, Manual Focus ...


When ordering, do not forget to choose the correct cable (several possible) and order it for your camera / Focus pulling, if you want to operate it with the monitor! 1 x Portkeys USB-C cable is supplied as standard.

Downloads en Firmware upgrades: https://www.portkeys.store/pages/firmware-download

Support Camera

Support Wi-Fi control RED Komodo
Bluetooth control BMPCC 4K, 6K, 6K Pro
Wired control of Sony, Canon, Panasonic, BMD, and Zcam E2.
It also supports motor control of the Tilta Nucleus N/M.
It allows you to control the focus of Komodo, BGH1, E2 via the touch screen.


Camera Control

Portkeys BM5 WR comes with a wireless control module specially designed to connect with RED Komodo wirelessly. The BM5 WR with Camera Control maintains the same reliable BM5 clarity, vivid color details, and dynamic touch screen camera control.

Robust design

Rugged aluminum alloy shell design, durable and lightweight. BM5 WR uses a sturdy aluminum alloy shell and weighs only 376g, which can withstand heavy daily operations, so it is easy to carry when shooting.

2200nits Super Bright, Sees Everything Clearly in Daylight

Portkeys BM5 WR offers a 2200nits ultra-high brightness 5.5-inch display with a clear resolution, excellent color, and contrast, and precise image control.

HDMI/SDI Loop Out

The SDI input provides real-time monitoring. SDI OUT can output an image superimposed with 3DLUT and a new peak.

Color calibration

Each BM5 WR has passed strict hardware color calibration before shipping to ensure the widest color gamut and the most accurate colors.

10-bit (8+2 FRC)

The 10-bit color depth makes the display color reproduction more accurate, the image quality is more delicate, and the level is richer.

New Peaking

The optimized new peaking algorithm can accurately capture the subtle facial focus. IRE can be set freely for ARRI false color.

High-precision Waveform

The high-precision full-screen waveform can accurately capture 1920X1080 pixels frame by frame.

Semi-Transparent Superimposable Frozen Frame Image

The freeze-frame can be semi-transparently superimposed on the HDMI or SDI video so that the photographer can correct the displacement.

Tilta Cursor Display

The BM5 III-WR can display the position of the iron head wireless follow the focus scale. All in all, it can provide professional content creators with reliable tools for various scenario

Blackmagic:

BMPCC4K, BMPCC6K, URSA MINI 4K, URSA MINI 4.6K, URSA MINI PRO 4.6K G2, URSA BROADCAST, CINERA CAMERA 2.7K, CINERA CAMERA 4K, MICRO STUDIO CAMERA 4K (LANC control cable)


Canon:

5D MARK III, 5D MARK II, 6D, 6D MARK II, 80D (MINI USB control cable)
1DX, 1DX MARK II, 5DS, 5DS R, 5D MARK IV (MICRO USB control cable)
R5, R6, C70, EOS R [TYPE-C/USB-C control cable]
C700 PL, C700 GSPL, C300 MARK 2, C300 MARK 2 PL, C200, C200B, C100, C100 MARK 2 (LANC control cable)


Panasonic:

GH5, GH5S, S1, S1H, S1R, S5, G9, BGH1


RED Komodo

REC key

Sony:

A9, A7M II, A7R II, A7S II, A7M III, A7R III, A7R IV, A6000, A6300, A6400, A6500, RX100, RX02 (MULTI control cable)
FS5, FS7, FX6, FX9 (LANC control cable)
A7S III [TYPE-C/USB-C control cable]


Z CAM:

E2, E2 S6, E2 F6 (LANC control cable)
