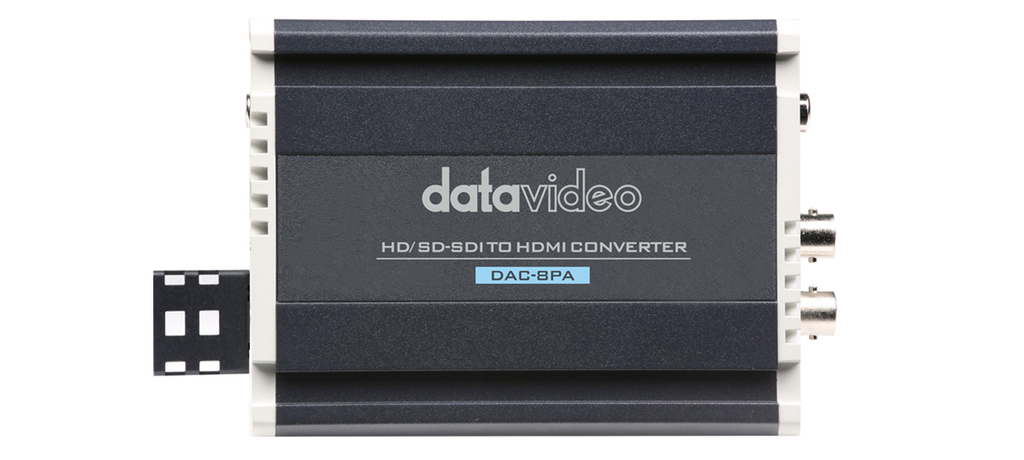

DAC-8PA - DatavideoEAN  672255008614

Converters > Digital > Digital
EAN:672255008614
€ 239,00 + VAT
€ 291,58 VAT Included
Adcom - Datavideo
New
Availability: 1 unit
Convert SDI to HDMI with audio de-bedding options
The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to de-beded audio from a stereo RCA connection, or can be used in both HDMI output and analog audio output.
Support 1080p 50/60

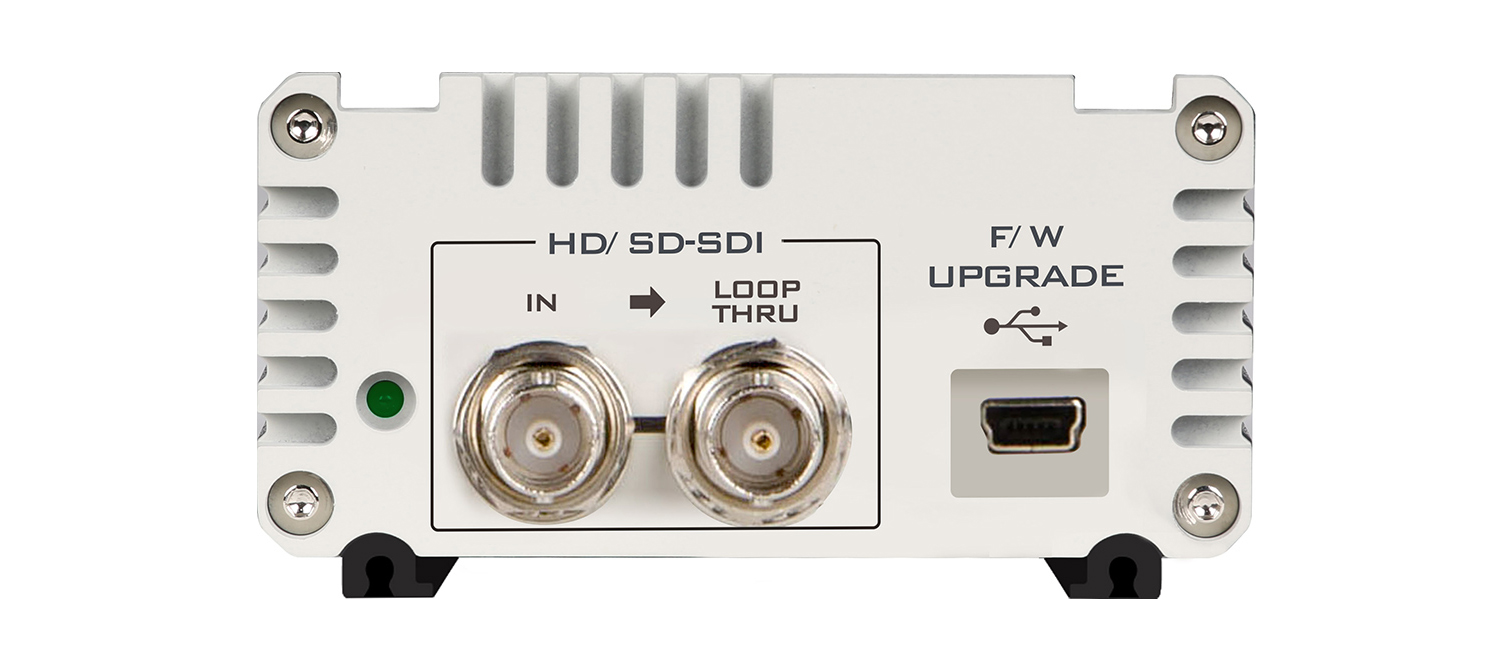

One SDI loop-through output and one HDMI output.
Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Conversion : 3G/ HD/SD-SDI to HDMI
Video Inputs : 1x 3G/HD/SD-SDI
Loop Through : 1

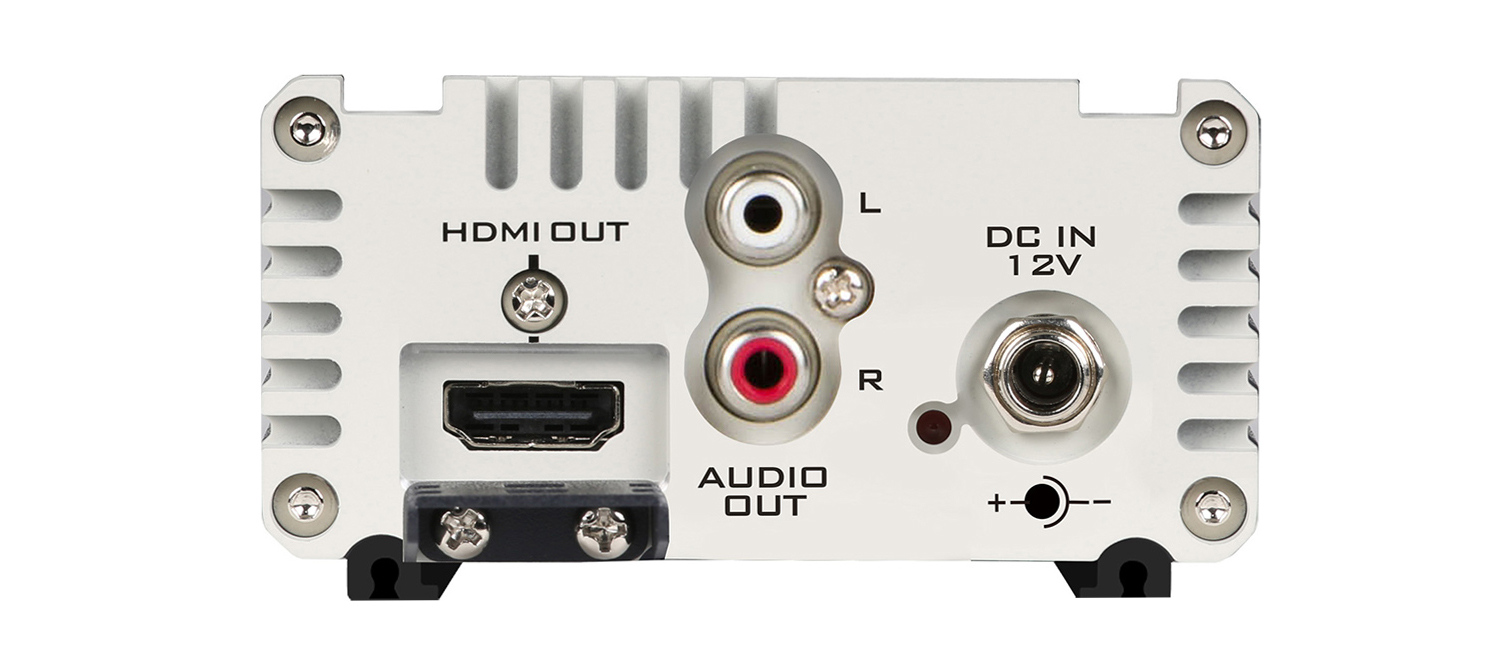

Video Outputs : 1x HDMI with embedded Audio
Audio Inputs : 2x SDI Audio embedded
Audio Outputs :
° 2x RCA (Stereo Pair)
° 2x HDMI Audio embedded

Supported Video Input Formats
° 1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
° 1080i (50/59.94/60Hz),
° 720p (50/59.94/60Hz),
° 625i 50 (PAL), 525i 59.94 (NTSC)

Output Resolutions : Automatically matches the SD, HD and 3G SDI video input
Equalizer : Yes
Reclock : Yes
SDI Cable Drive : Yes
Dimension (LxWxH) : 112 x 85 x 45 mm
Weight : 0.4 kg
Operating Temp. Range : 0~40 °C
Power : DC 12V, 4W
1 x DAC-8PA product
1 x AD Switch DC 12V
1 x Thank You Card
