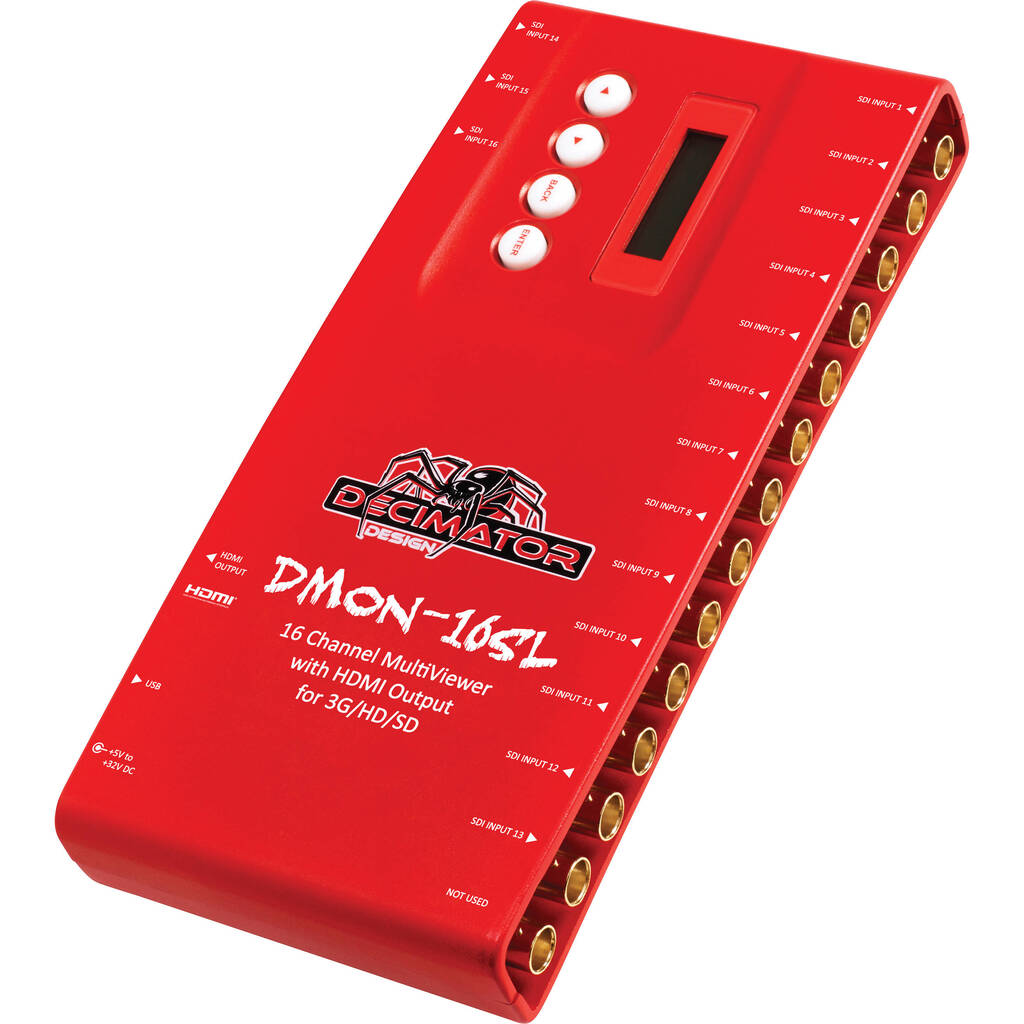

DMON-16SL - Decimator

1 to 16 Channel MultiViewer with HDMI output for 3G/HD/SD. Support for both 3G level A and B on the inputs.
? Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer
? Custom Layouts with various standard layouts
? 16 Character UMD overlay per window with individual enables,
custom positioning and size
? Audio ID overlay
? Load and restore Custom Layouts
? Fast switching between inputs using Full-Screen scaling
? Selectable output format in both Full-Screen and Multi-Viewer mode
? Low latency buffering for each input allowing non-synchronous
inputs
? 16 x (3G/HD/SD)-SDI inputs with auto detection
(26 Formats supported in total)
? Each window is independent of the others, allowing any
3G/HD/SD format of any frame rate to be displayed
simultaneously
? Variable aspect ratios per window
? Pass-Through mode allowing any of the 16 inputs to be
selected and routed to the the HDMI output
? In Pass-Through mode the selected input is passed through
to the HDMI output
? The DMON-16SL is a truly portable converter, that incorporates
our new easy to use LCD and button control system. This
gives you easy access to most of the amazing features without
using complicated LED/button control, dip switches or having to
carry around a computer to change a simple setting.
? This unit also includes:
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
