SkyPanel X - L1.0048488 - Arri

Studio and Cinema lights > Accessories
€ 5.749,00 + VAT
€ 7.013,78 VAT Included
Adcom - Arri
New
Available in 15 days

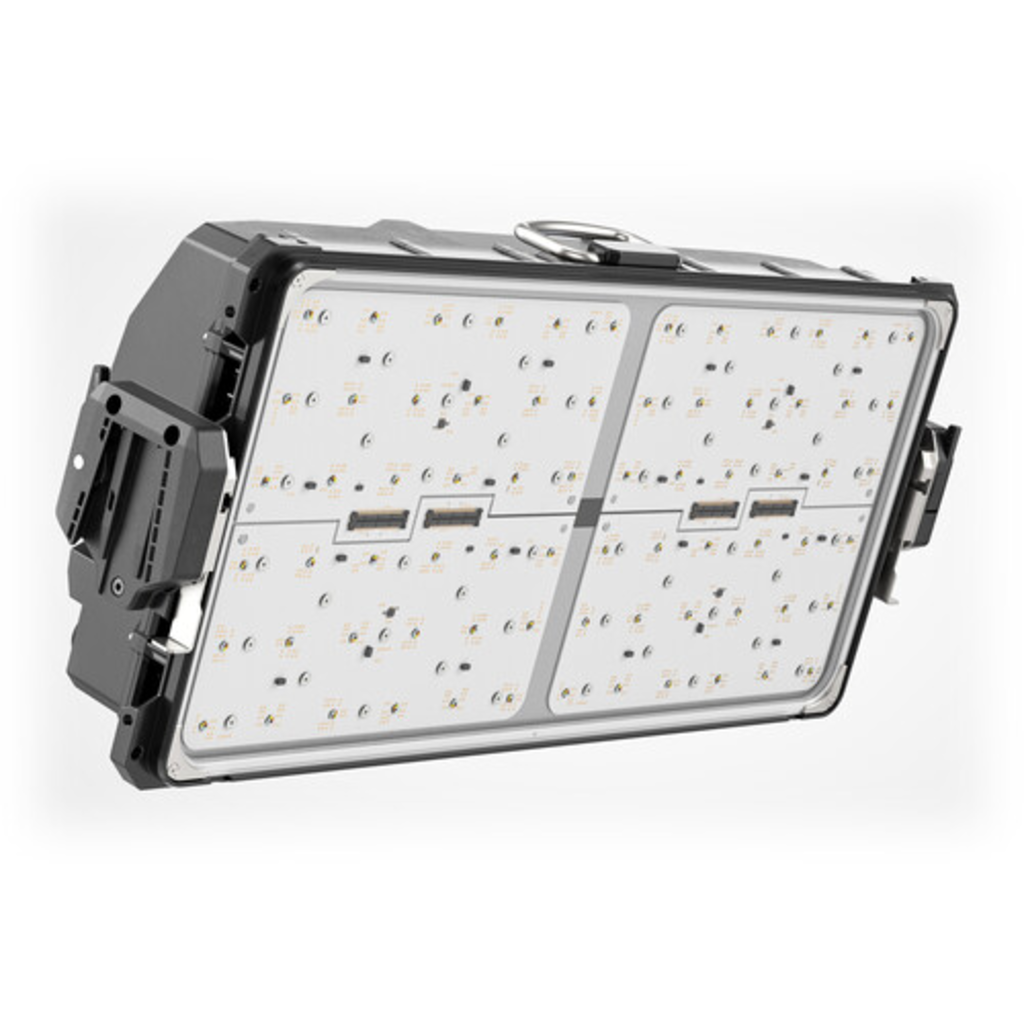

ARRI SkyPanel X black incl. X21 Dome, Color Temperature 1500-20.000K, 51,809 Lumens

Add a powerful, all-weather LED panel to your production with the black SkyPanel X21 Modular LED Panel from ARRI.
Based on the S60 SkyPanel, this modular LED panel provides hard and soft lighting options with new dimming, color science, and output quality that enhances medium to long throws with up to 20x greater output than other soft lights.

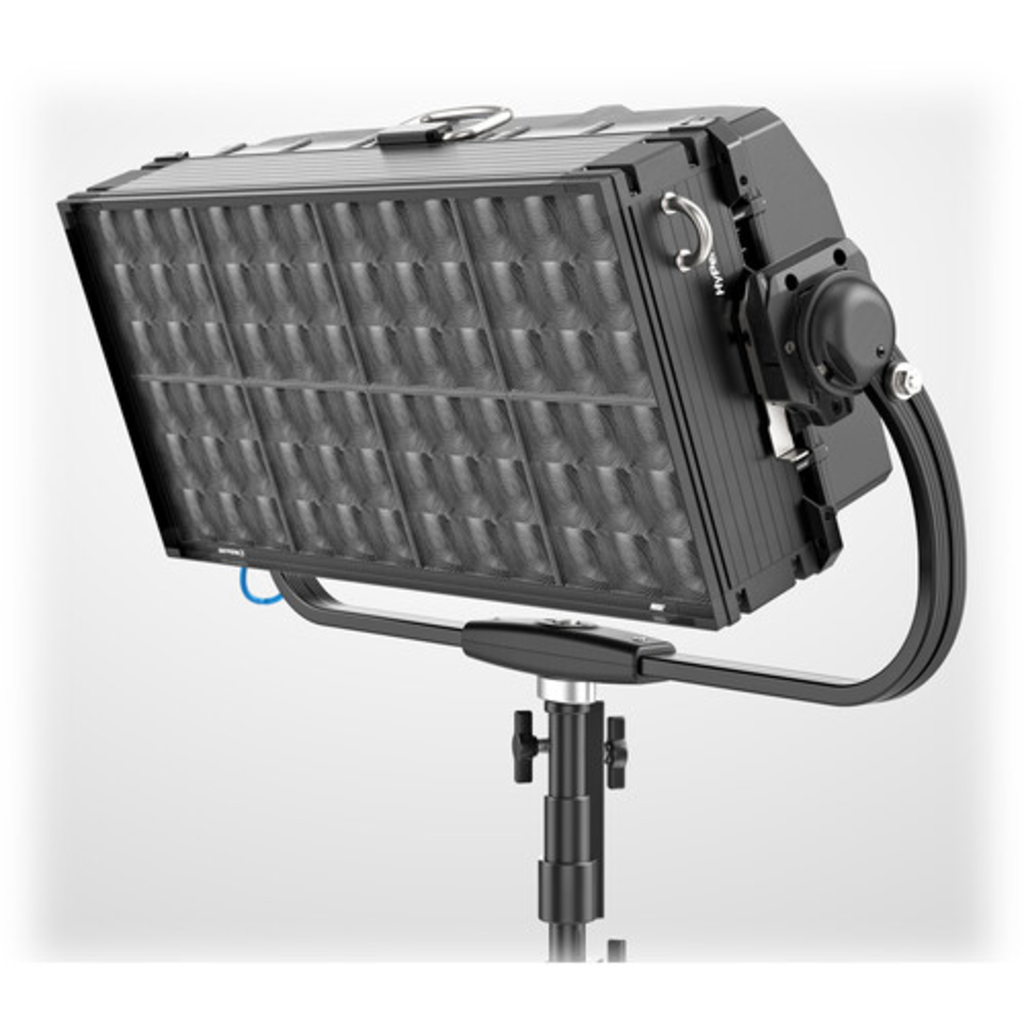

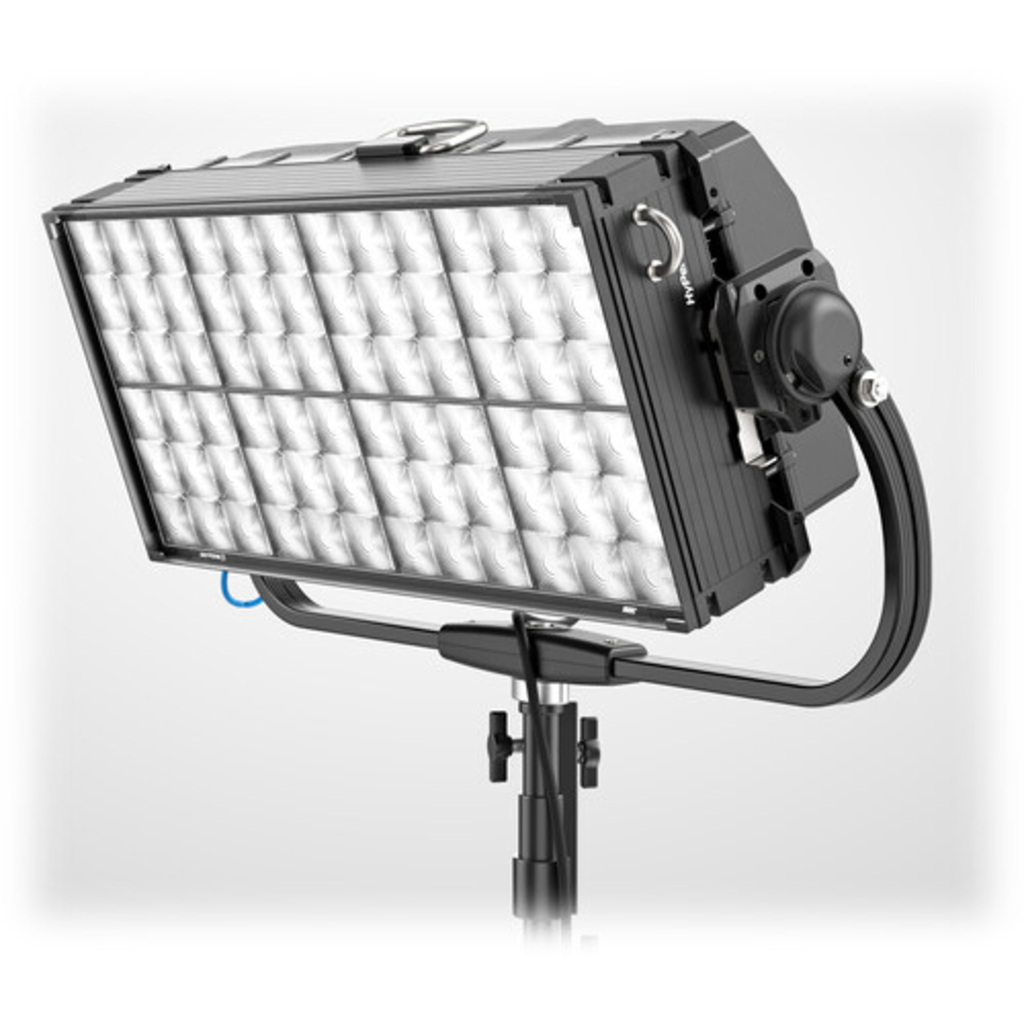

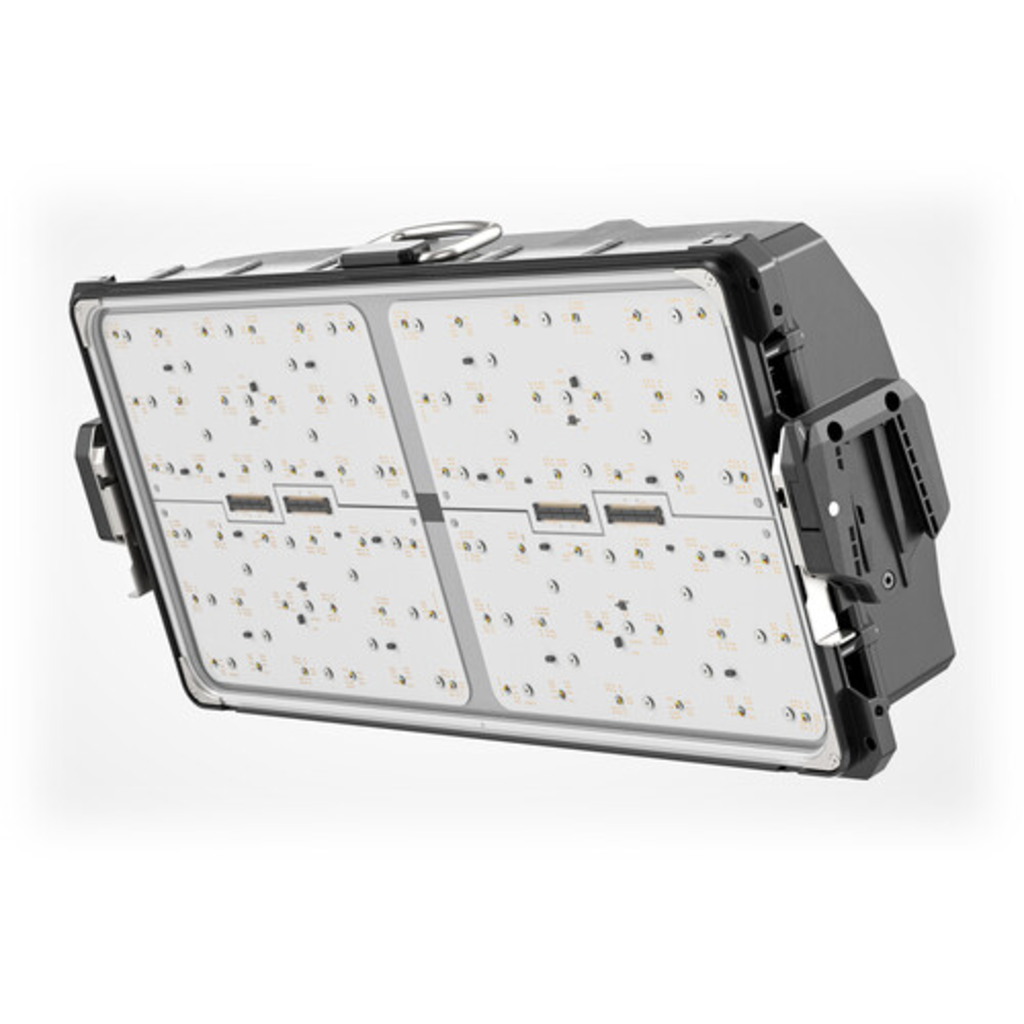

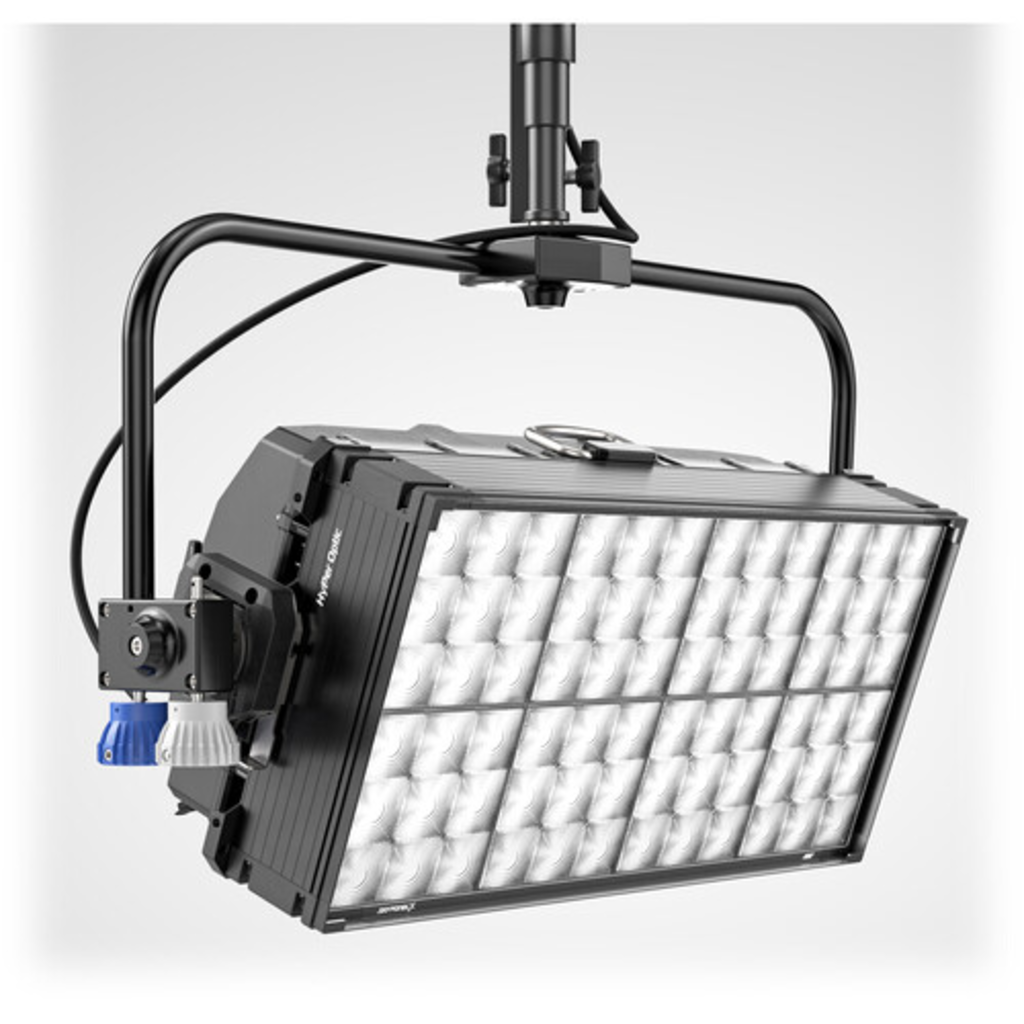

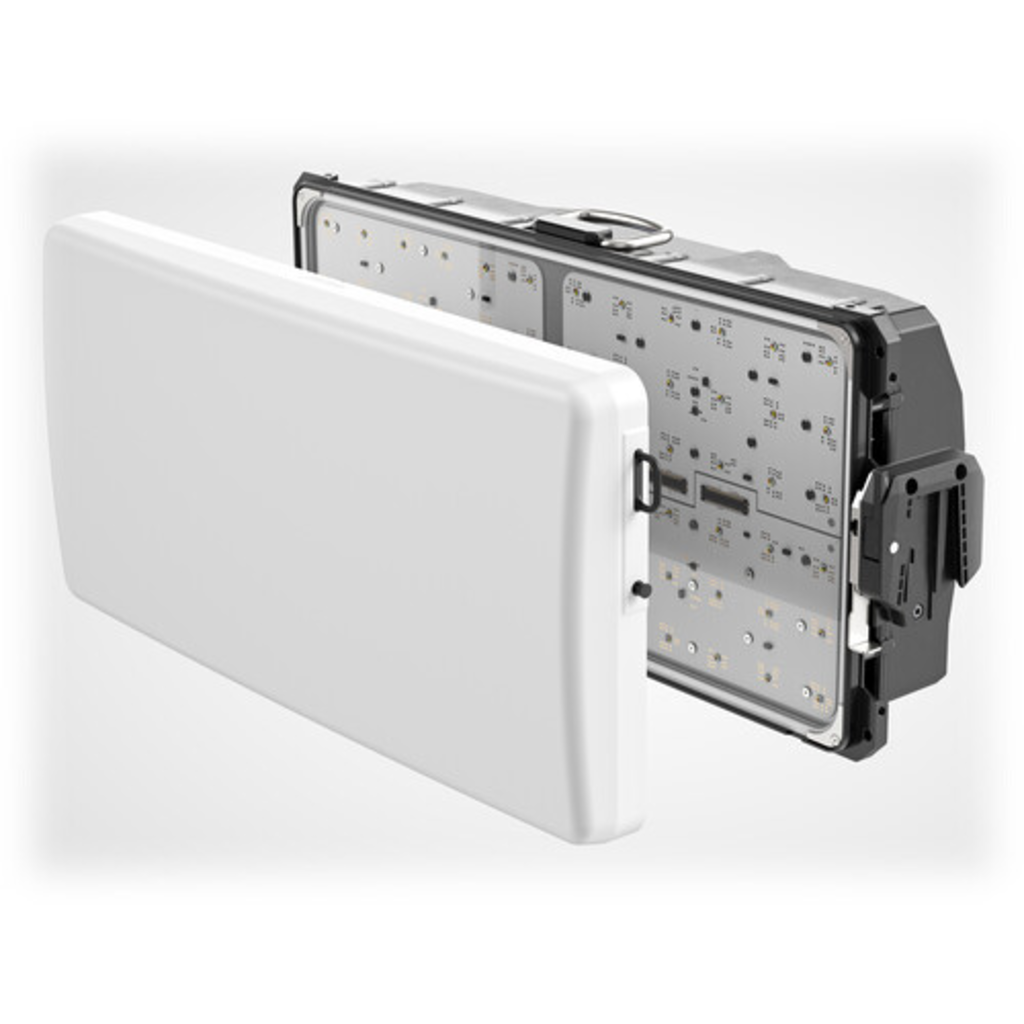

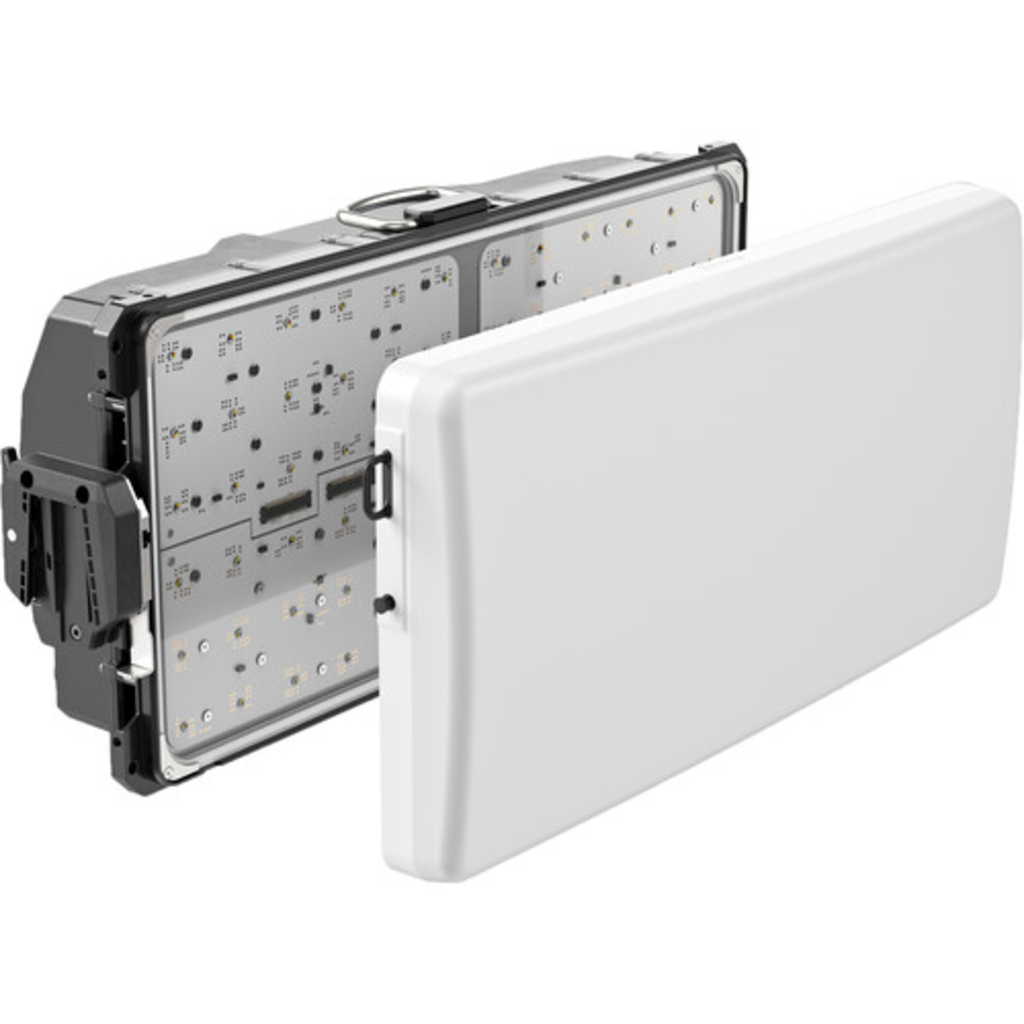

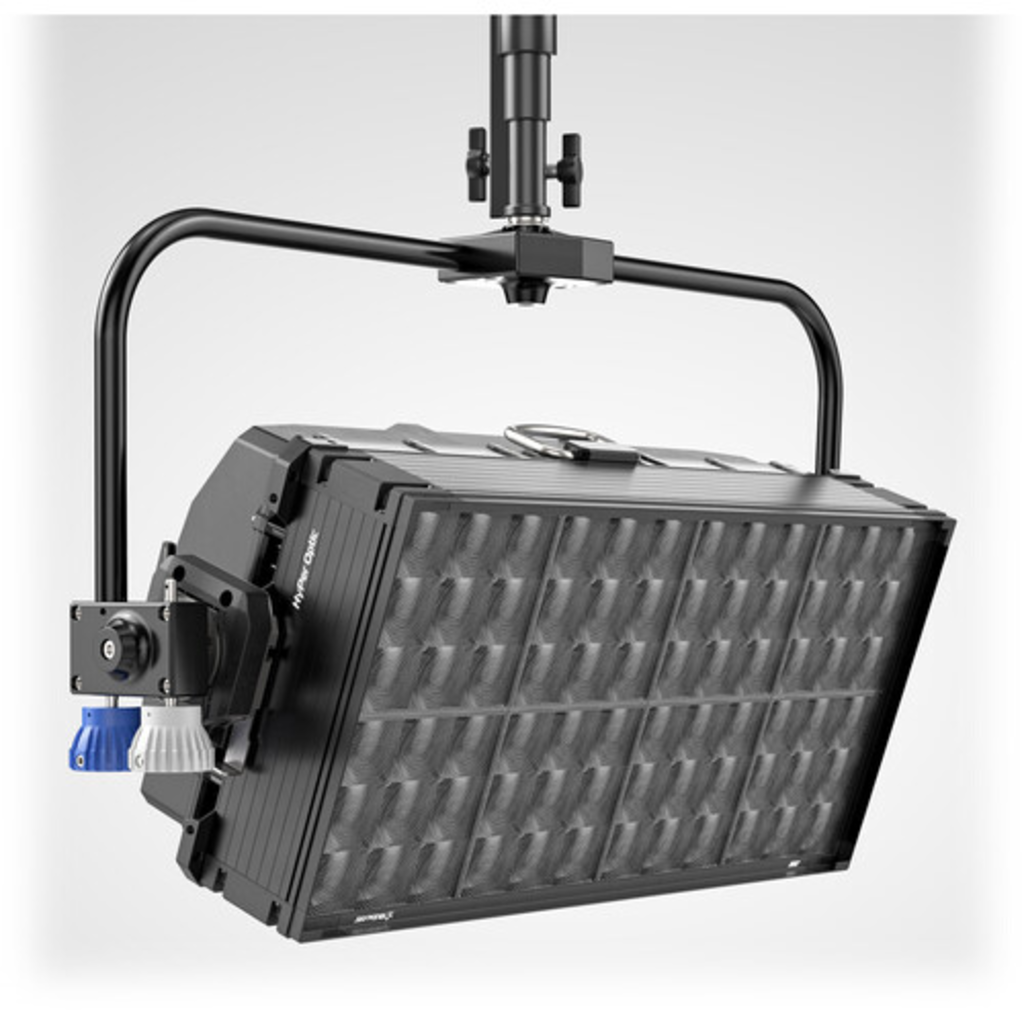

The modular design supports native soft light using the included dome and hard light using open-face lighting and the optional HyPer Optic lens, and multiple panels can be used together to work as a single fixture in 2x1 (X21), 2x2 (X22), and 2x3 (X23) configurations.

This 2x1 panel measures 29.1 x 13.3" and features a full-spectrum RGBACL color engine, 1500-20,000K CCT range, accurate color rendition, numerous wired and wireless control options, and it sports an IP66 rating for performance in all weather conditions.
It also features a built-in power supply unit for portability, and power can be daisy-chained with other SkyPanel X units to create expanded lighting grids.
The SkyPanel X is also compatible with all S60 accessories using an optional adapter.

- For Studio & Film/TV Production
- Modular Design, Native Soft & Hard Light
- 16,613 Lux at 3.3', X21 Dome Included
- 1500 to 20,000K Color Temperature
- 2x1 Panel Size, CRI 99, TLCI 93
- All S60-C Accessories Work with Adapter

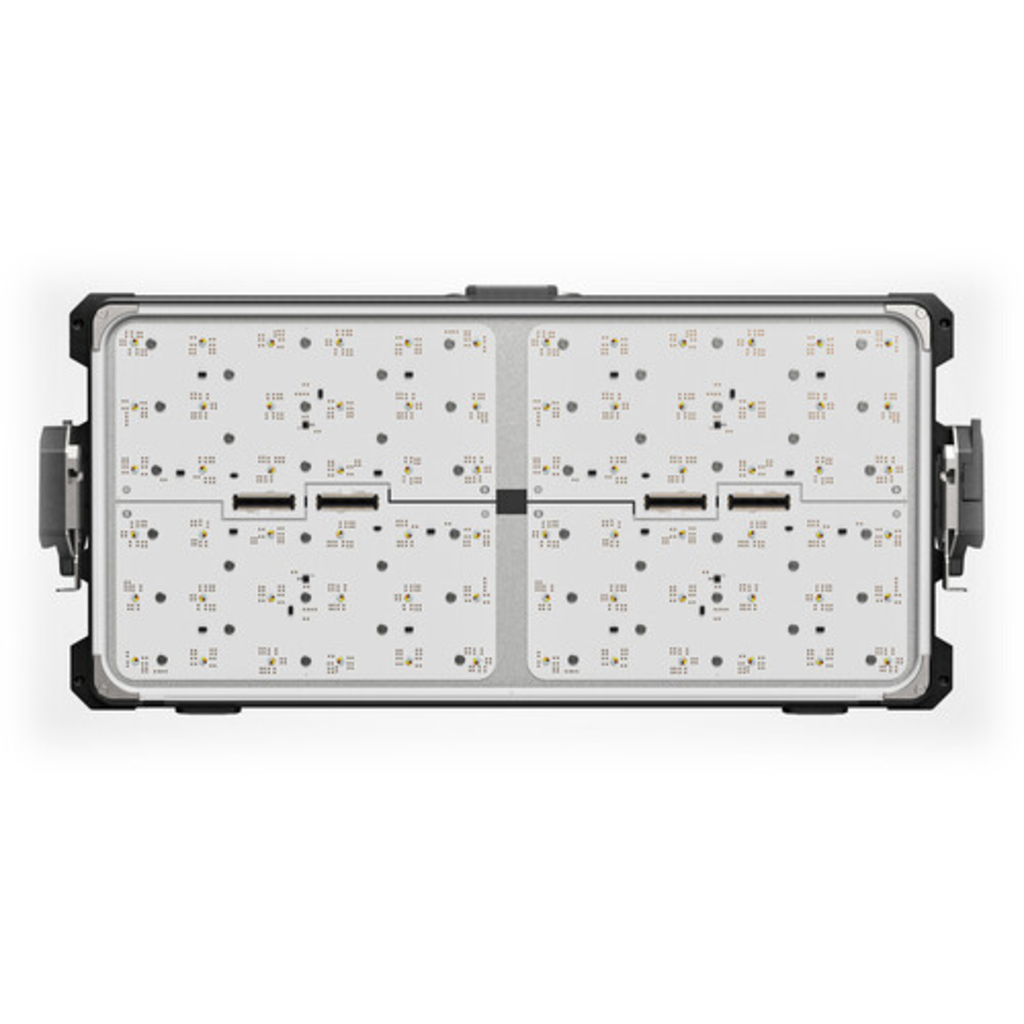

- 8 Pixel Zones per Panel
- Wired/Wireless Control Options
- 15 Macros & 15 Pre-Programmed FX
- Passive/Active Cooling, Integrated PSU
Light Fixture
Item Type: 1x LED Light Panel
Included Light Modifier: 1x Dome
Included Storage Case: No
Lumens: 51,809
Photometrics:
120° at 3200K:
1458 fc / 15,695 Lux at 3.3' / 1 m (Unmodified)
162 fc / 1744 Lux at 9.8' / 3 m (Unmodified)
40 fc / 436 Lux at 19.7' / 6 m (Unmodified)
120° at 5600K:
1543 fc / 16,613 Lux at 3.3' / 1 m (Unmodified)
171 fc / 1846 Lux at 9.8' / 3 m (Unmodified)
42 fc / 461 Lux at 19.7' / 6 m (Unmodified)
106° at 3200K:
1198 fc / 12,900 Lux at 3.3' / 1 m
133 fc / 1433 Lux at 9.8' / 3 m (with Dome)
33 fc / 358 Lux at 19.7' / 6 m (with Dome)
106° at 5600K:
1263 fc / 13,600 Lux at 3.3' / 1 m
140 fc / 1511 Lux at 9.8' / 3 m (with Dome)
35 fc / 378 Lux at 19.7' / 6 m (with Dome)
Color Temperature: 1500 to 20,000K
Color Modes: RGB, Daylight, Tungsten
Color Accuracy Standard: CRI 99 | TLCI 93
Dimming: Controller Not Included
Cooling System: Fan/Passive Combo
Beam Angle:
- 120° Unmodified
- 106° with Included Diffuser
Built-In Flash: No
Pixel Zones: 8
Preprogrammed Effects: Yes
Umbrella Mount: No
Front Accessory Mount: Proprietary

Connectivity
Wireless Remote Control Type:
- Bluetooth 5.0 *Power Supply/Controller Required (Not Included)
- Wireless CRMX (CRMX Classic, CRMX2) *Power Supply/Controller Required (Not Included)
- Wireless DMX (W-DMX G3 / G4 / G4S / G5) *Power Supply/Controller Required (Not Included)
Mobile App Compatible:
Yes: Android & iOS
Functionality: Remote Control

Power & I/O
Power Source:
- AC Power (Cable Not Included)
- Battery (Not Included)

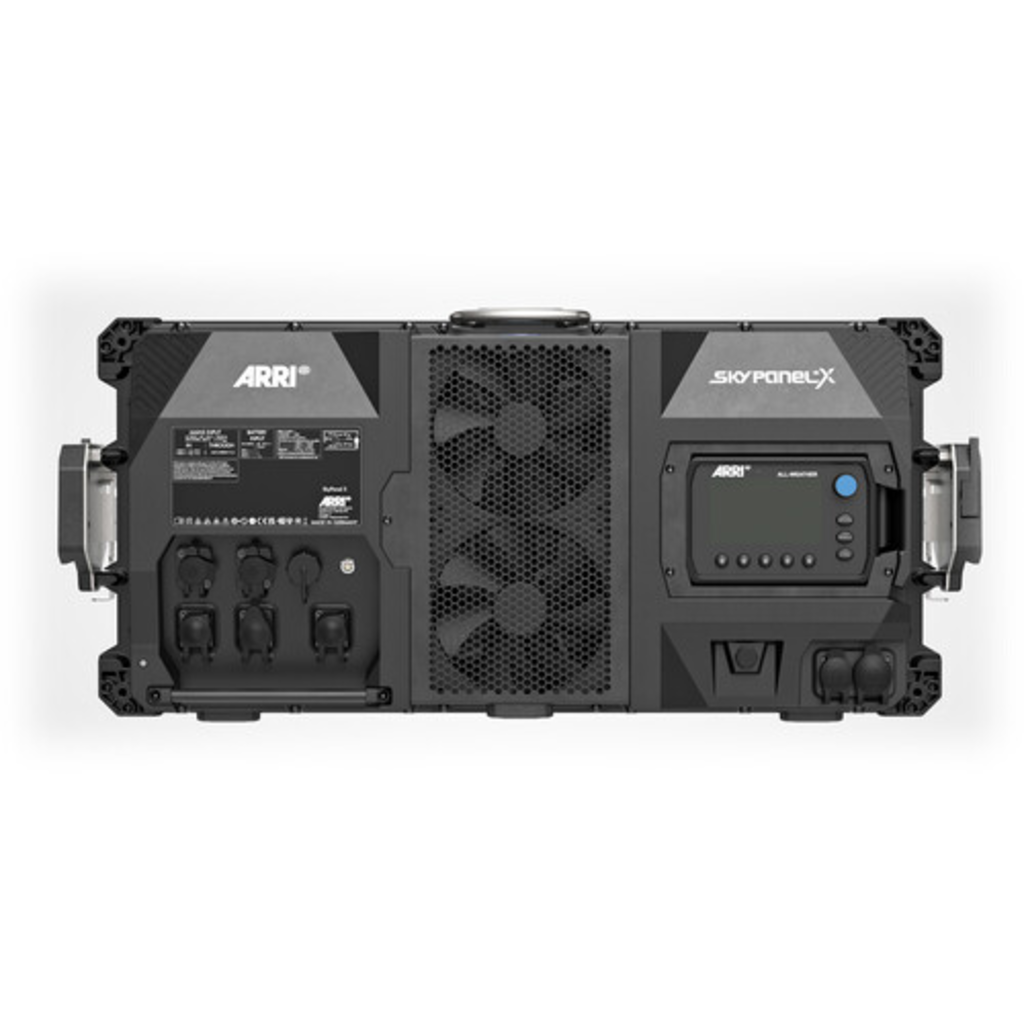

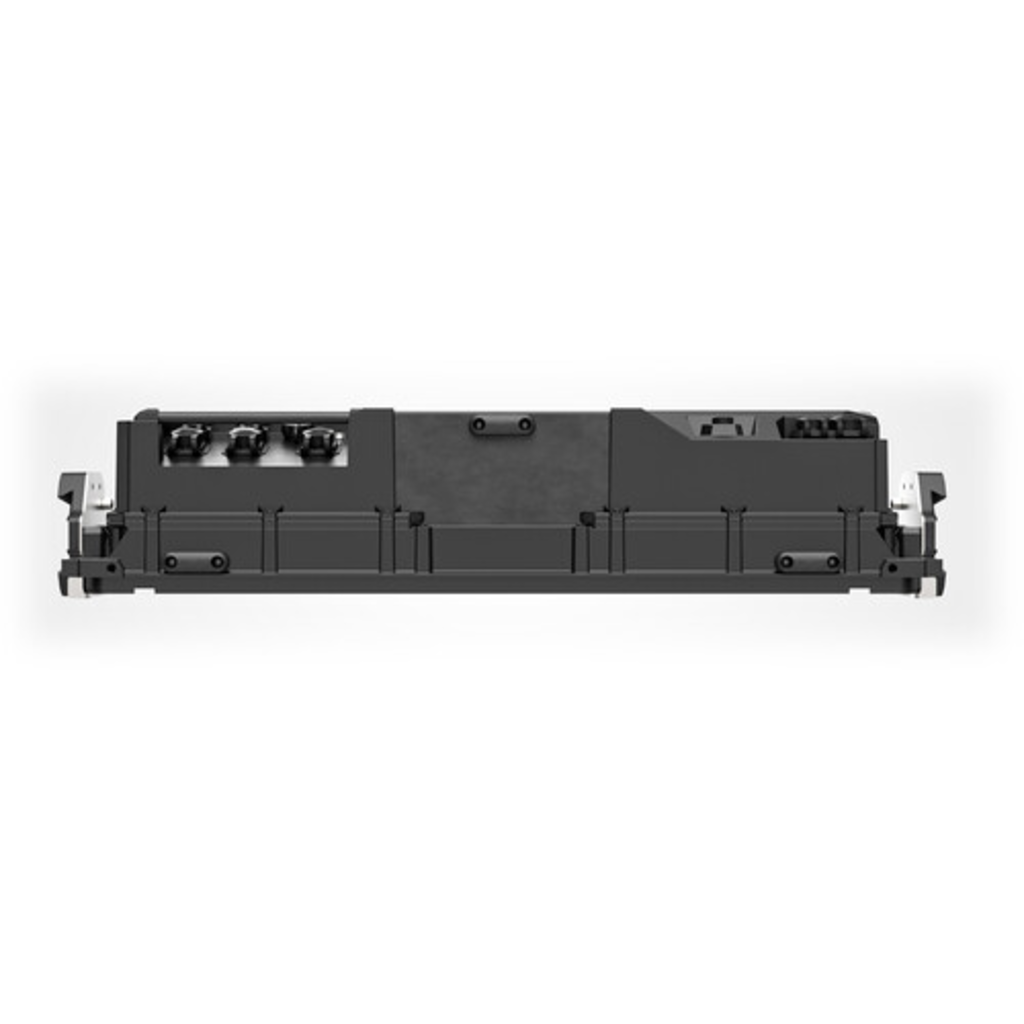

Inputs/Outputs:
- 1x powerCON TRUE1 TOP AC Power Input
- 1x powerCON TRUE1 TOP AC Power Output
- 1x XLR 3-Pin Male Battery Input (48 VDC)
- 2x etherCON/RJ45 Network Input/Output
- 1x XLR 5-Pin Male DMX Input
- 1x XLR 5-Pin Female DMX Output
- 1x USB-C Firmware/Service Input/Output
Battery: 1x Battery Power Station, 48 VDC (Not Included)
Input Power:
48 VDC
100 to 240 VAC, 50 / 60 Hz
Power Pass-Thru: Yes
Power Consumption: 800 W

General
Display: No
Environmental Resistance: Dust/Water-Resistant (IP66)
Operating Conditions: Up to 104°F / 40.0°C
Certifications: CB, CE, ENEC, FCC, ICES, KC, PSE, UKCA, cNRTLus
Dimensions: 29.1 x 13.3 x 6.1" / 73.9 x 33.8 x 15.5 cm (Fixture)
Weight: 33 lb / 15 kg (Fixture)
1x Pannello LED modulare SkyPanel X21 (nero)
1x Dome SkyPanel X21
