Yamaha XMV8140 | Power Amplifiers | Power Amplifers

Yamaha 8x140W/4Ohm Amplifier - 8x125W/80Ohm at 100V - Equipped with the new YDIF digital audio format for easy setup

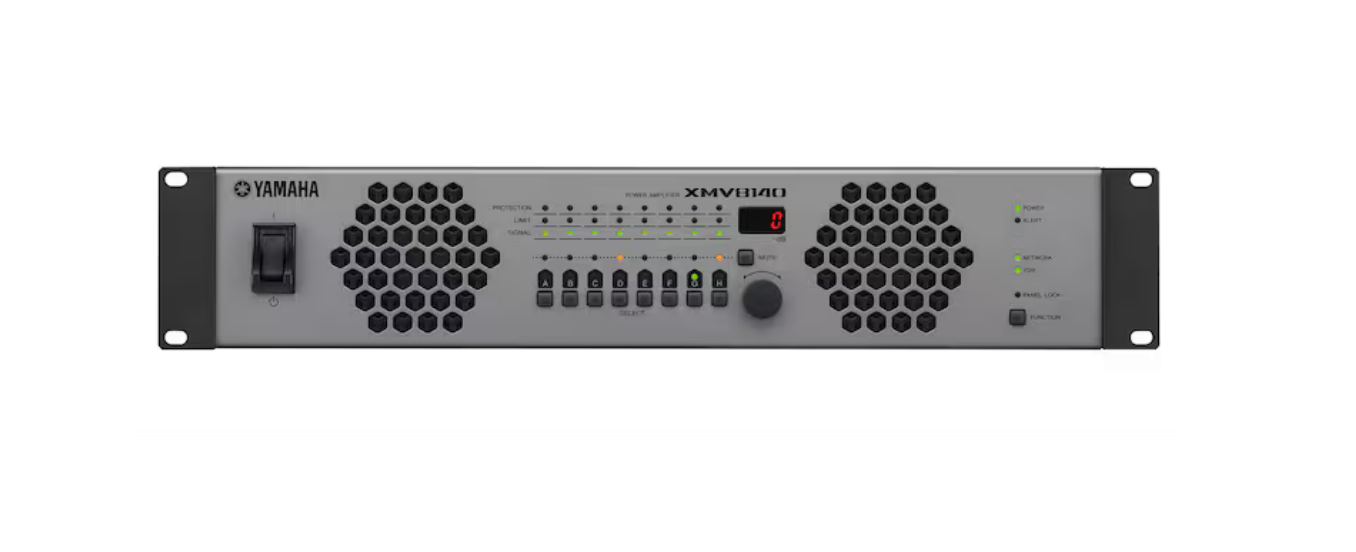

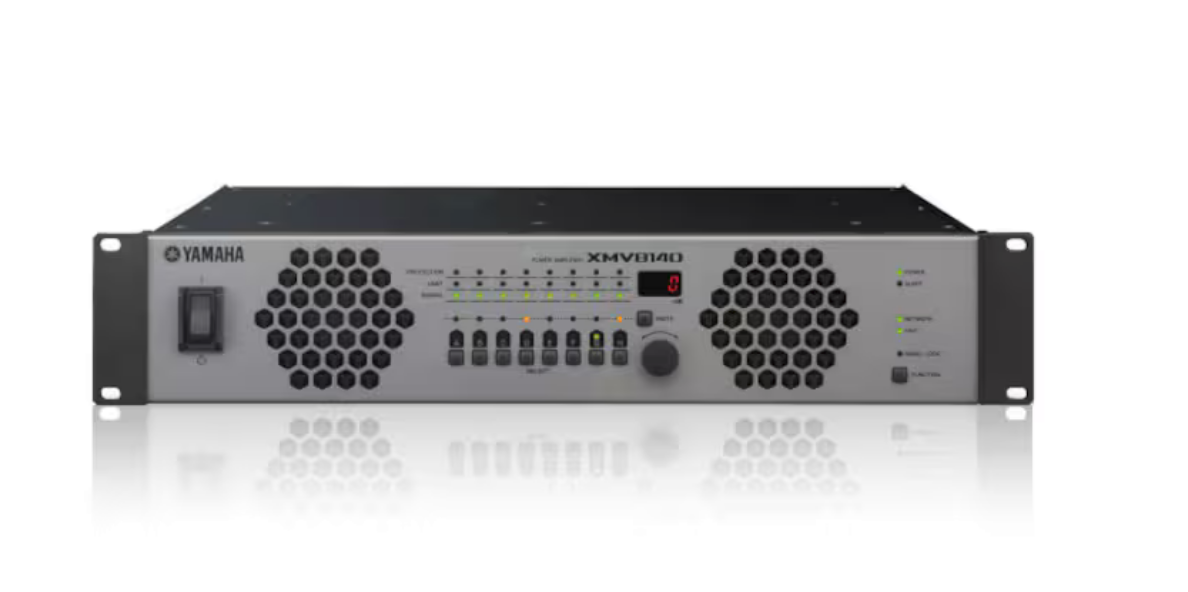

The Yamaha XMV8140 is a highly efficient, multi-channel Class D amplifier designed specifically for commercial installations and distributed audio systems.
Thanks to its versatility, it can simultaneously power low-impedance (4O/8O) and high-impedance (70V/100V) loads, eliminating the need for external transformers and simplifying setup.

- Output Flexibility: It handles 8 independent 140W channels or, in "Double Power" mode, 4 channels of 280W for systems requiring more power.
- Hybrid Support: Ability to operate in both low and high impedance, ideal for covering multiple installation areas with a single unit.
- YDIF Connectivity: Equipped with Yamaha's proprietary YDIF digital protocol for simplified signal transmission via standard Ethernet cable.
- Efficiency and Reliability: Advanced circuitry reduces power consumption and built-in protection features for continuous 24/7 operation.

Power Supply
Channels: 8 channels.
Output Power (4O/8O): 140W x 8.
Double Power Mode (8O/4O): 280W x 4.
High Impedance (70V/100V Lines): 125W x 8.

Audio
Frequency Response: 20Hz - 20kHz (0dB, ±1.0dB).
Total Harmonic Distortion (THD+N): <= 0.2% (1kHz, half power).
S/N Ratio: => 100dB (A-weighted).
Crosstalk: <= -60dB.
Input Sensitivity: +4dBu

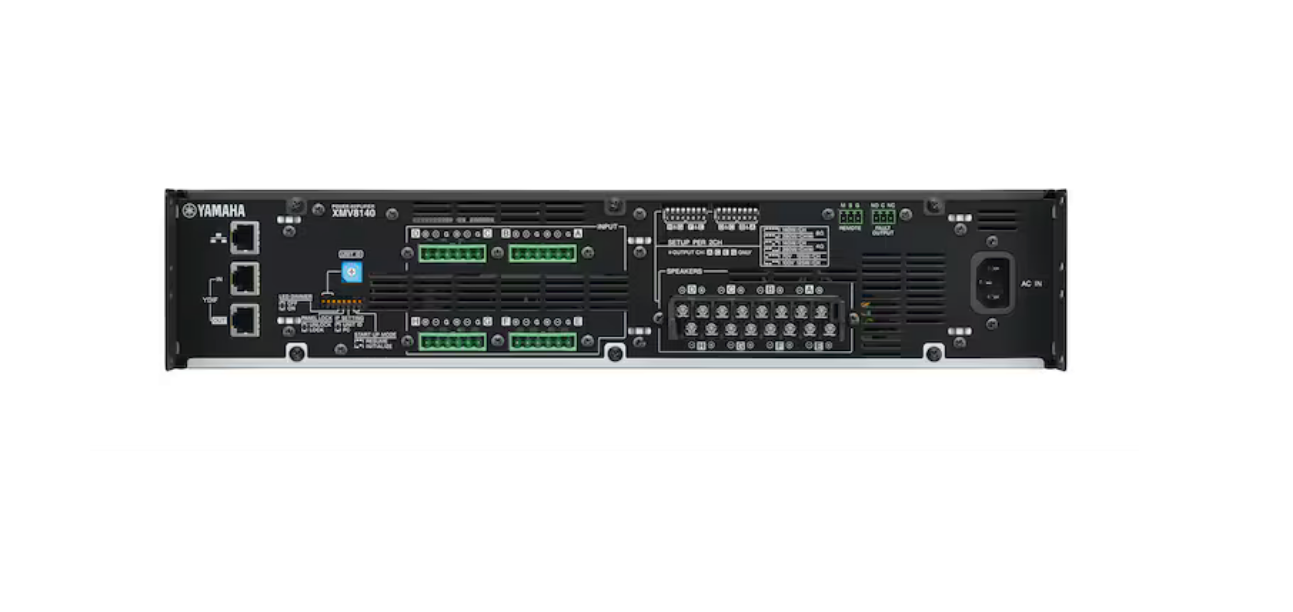

Connectivity and Control
Analog Inputs: 2 x Euroblock (6-pole, balanced).
Digital Inputs: RJ45 x 2 (YDIF In/Out format for the standard model). Note: The "D" version uses Dante.
Speaker Outputs: Barrier strip x 8 pairs.
Control Ports: Remote, Fault Output via Euroblock (3-pin).

Dimensions and Weight
Dimensions (W x H x D): 480 x 88 x 422 mm (Fits 2 rack units).
Net Weight: 10.1 kg.
