Relacart EZ.Mi4 + EZ H8 | Table Handheld | Microphones Wireless

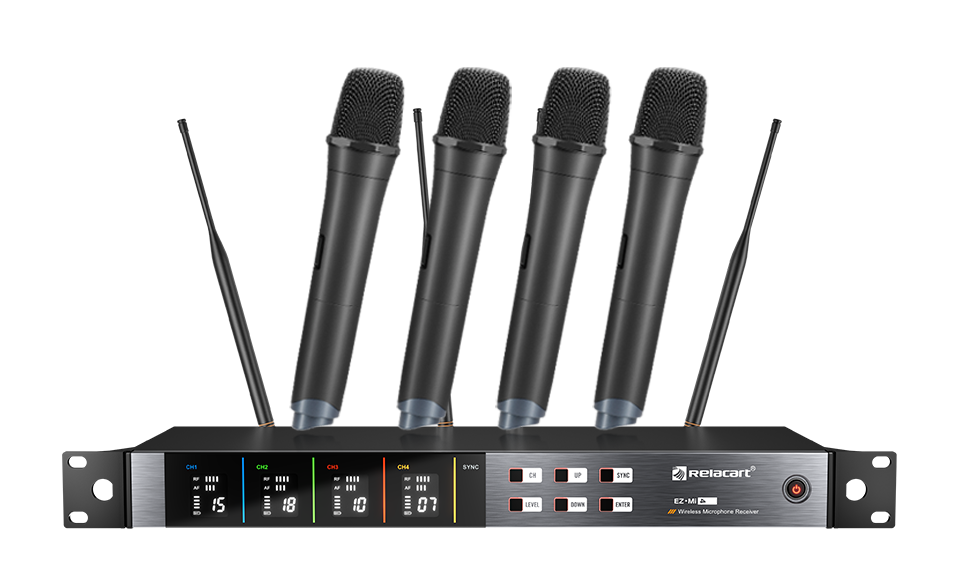

Relacart True Diversity Four-Channel Wireless Receiver (470MHz-960MHz) + 4x EZ-H8

The system consists of:
- 1 x EZ.Mi4 4-channel receiver
- 4 x antennas
- 4 x EZ-H8 transmitters

EZ. Mi4 is a highly cost-effective four channel UHF wireless microphone system.
The main feature is that the transmitter uses a simple and bright LCD display to display the current channel and battery power, and the receiver also uses a high brightness LED display to display the corresponding product information.
Infrared automatic frequency matching and lock the selected frequency.
The receiver adopts a standard 1 U all metal chassis it supports volume adjustment, channel adjustment and other functions.
The effective working distance is about 60-80 meters.
Suitable for commercial performance, schools, government enterprise projects, personal and family entertainment applications.

Carrier frequency range: 470MHz-960MHz
Frequency stability: 0.005%
Effective working distance (ideal environment): = 60m
Audio companding: DSP digital audio companding
Audio sampling rate: 48KHz
Audio frequency response: 50Hz - 18000Hz ± 3dB
Dynamic range: 92 dB
Signal to noise ratio (A-weighted): 105 dB
Total harmonic distortion: = 0.8%, @ 1KHz
Operating temperature range: - 10°C ~ +50°C
Receiving mode: four channels, superheterodyne true diversity receiving
Image rejection: 45dBm
RF sensitivity: S/N = 45dB when 10dBu is input
Silence adjustment: built-in setting parameters
Frequency synchronization mode: infrared SYNC
Maximum output level: LINE: 0.5Vpp
Output level adjustment range: 6-level adjustable, attenuating adjustment, step by step every 3dB,
Power supply mode: DC 12V/1A
Normal working current: DC 12V: 380mA
Dimensions (mm): 410(L) x 212 (D) x 43(H)
Weight(without battery): about 1.95kg
