VITTORIA RR - Glensound
Audio over IP > DANTE
€ 3.652,80 + VAT
€ 4.456,42 VAT Included
Adcom - Glensound
New
Available in 17 days

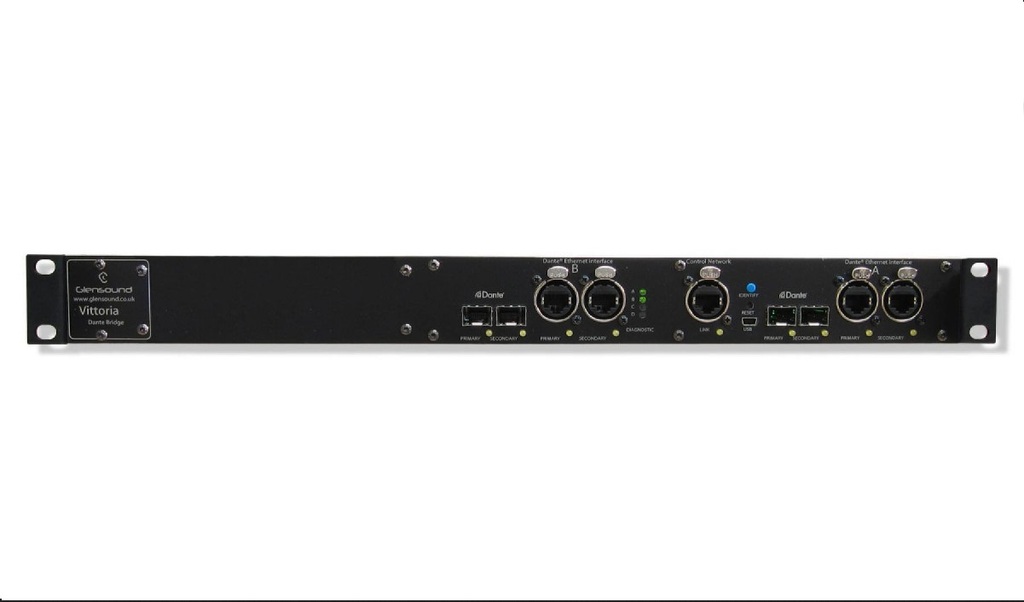

Glensound 32 channell Network Bridge between two DANTE networks - VITTORIA RR
The Vittoria provides a bridge between two internal and separate Dante networks.
These networks are completely isolated from each other with 100% network security, providing a complete network firewall.
Vittoria links 32 channels from each network directly in DSP, allowing the passing of bi-directional audio but with complete isolation and security from each separate network.
As each network is isolated, they can operate asynchronously and at different sample rates from each other without any problems.
Each network can operate at sample rates from 44.1 kHz up to 192kHz.
Two Dante Interfaces
The Vittoria has two Dante network audio interfaces. Each interface has:
- Primary connection using copper Ethernet via RJ45 EtherCON socket
- Secondary connection using copper Ethernet via RJ45 EtherCON socket
- Primary fibre connection via SFP module slot
- Secondary fibre connection via SFP module slot
New Network interface options
A Ravenna/AES67 module is now also available allowing the Vittoria to include a Dante and a Ravenna module, for two isolated networks using different technologies but still passing audio. Available configurations are:
- Vittoria DD: Dante to Dante
- Vittoria DR: Dante to Ravenna
- Vittoria RR: Ravenna to Ravenna
Independently Operated Networks
As each side of the Vittoria is independent and not connected across a network, they can have independent settings.
32 Channels
The Vittoria features a Dante Brooklyn II module in each interface and has 32 channels.
Whatever you input on the primary interface is output on the secondary interface, and vice versa, up to 32 channels.
Network Compatibility
As well as Dante & AES67, the Vittoria is also SMPTE ST-2110-30 compatible.
Each Network Can Operate Asynchronously
Although each network of the Vittoria is connected via Ethernet, they can be operated with different master clocks at different clock speeds.
This could be useful if you needed to spread the number of devices on one network across two.
This would be very useful when using a high number of Ultimo based devices, for example.
Separate Word Clock In/Out
Each network interface has a word clock input and a word clock output connection, available on full size BNC connectors.
This allows connection of other devices for clock sync on each network separately.
Vittoria As A Sample Rate Converter
Typically each network interface of the Vittoria will operate on separate networks, however they can both be connected to the same network if you would like to use the Vittoria as a sample rate converter.
